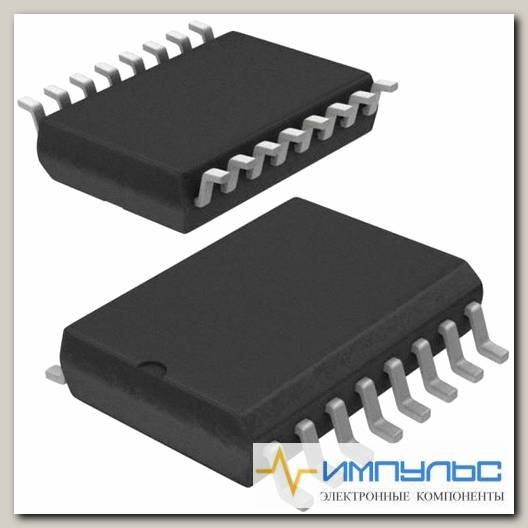

74HC153D,653 /Код si-500403
- Артикул: si-500403
Semiconductors\Logic ICs\Logic GatesMultiplexer 2 x 4:1 16-SO
| Base Product Number | 74HC153 ->, |
| Circuit | 2 x 4:1 |
| Current - Output High, Low | 5.2mA, 5.2mA |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Independent Circuits | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40В°C ~ 125В°C |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ®, |
| Package / Case | 16-SOIC (0.154, 3.90mm Width) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Series | 74HC ->, |
| Supplier Device Package | 16-SO |
| Type | Multiplexer |
| Voltage - Supply | 2V ~ 6V |
| Voltage Supply Source | Single Supply |
| Absolute Propagation Delay Time (ns) | 225 |
| Automotive | No |
| Configuration | 2x4:1 |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Input Signal Type | Single-Ended |
| Logic Family | HC |
| Logic Function | Multiplexer |
| Maximum High Level Output Current (mA) | -7.8 |
| Maximum Low Level Output Current (mA) | 7.8 |
| Maximum Operating Supply Voltage (V) | 6 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 145 2V|29 4.5V|25 6V |
| Maximum Quiescent Current (uA) | 8 |
| Minimum Operating Supply Voltage (V) | 2 |
| Minimum Operating Temperature (°C) | -40 |
| Mounting | Surface Mount |
| Number of Elements per Chip | 1 |
| Number of Input Enables per Element | 0 |
| Number of Inputs per Chip | 8 |
| Number of Output Enables per Element | 2 |
| Number of Outputs per Chip | 2 |
| Number of Selection Inputs per Element | 2 |
| Output Signal Type | Single-Ended |
| Packaging | Tape and Reel |
| Parity Invert Input | No |
| Part Status | Active |
| PCB changed | 16 |
| Pin Count | 16 |
| Polarity | Non-Inverting |
| Power Supply Type | Single |
| PPAP | No |
| Process Technology | CMOS |
| Propagation Delay Test Condition (pF) | 50 |
| Supplier Package | SO |
| Typical Operating Supply Voltage (V) | 5 |
