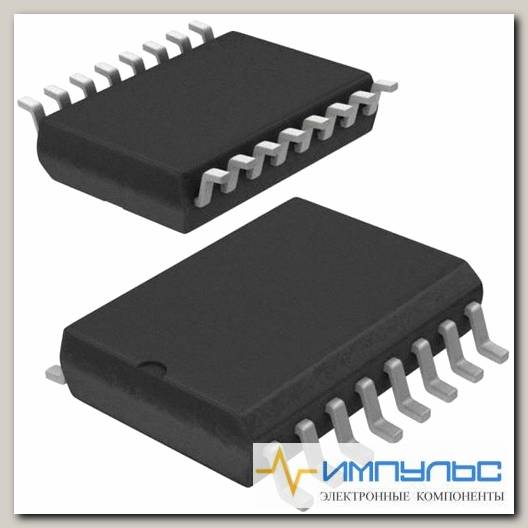

74HCT4051D /Код si-502232

IC, 74HCT CMOS, SMD, 74HCT4051; Logic Family / Base Number:74HCT4051; Logic Type:Demultiplexer, Multiplexer; No. of Outputs:8Outputs; Logic Case Style:SOIC; No. of Pins:16Pins; Supply Voltage Min:4.5V; Supply Voltage Max:5.5V; Logic IC Family:74HCT; Logic IC Base Number:744051; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Base Number:74; IC Generic Number:74HCT4051; Logic Function Number:744051; Logic IC Base Number:744051; Logic IC Function:8 Channel Analog Multiplexer/Demultiplexer; No. of Gates:1; On Resistance Rds(on):80ohm; Operating Temperature Range:-40°C to +125°C; Output Current Max:20mA; Supply Voltage:5V; Supply Voltage Range:4.5V to 5.5V; Termination Type:Surface Mount Device

Analog Switch ON Resistance	180 4.5V(ohm)
Analog Switch Turn Off Time	45 4.5V(ns)
Analog Switch Turn On Time	55 4.5V(ns)
Chip Enable Signals	Yes
Dual Supply Voltage (Max)	±5(V)
Dual Supply Voltage (Min)	±1(V)
Dual Supply Voltage (Typ)	±2.5(V)
High Level Output Current	25(mA)
Input Signal Type	SINGLE
Low Level Output Current	25(mA)
Maximum Propagation Delay Bus to Bus	8±4.5V/12 4.5V
Mounting	Surface Mount
Multiplexer Configuration	Single 8
Number of Channels	1
Number of Inputs	8
Number of Outputs	1
Operating Temp Range	-40C to 125C
Operating Temperature Classification	Automotive
Output Signal Type	SINGLE
Package Type	SO
Packaging	Tape and Reel
Pin Count	16
Power Dissipation	0.5(W)
Power Supply Requirement	Single/Dual
Rad Hardened	No
Single Supply Voltage (Max)	5.5(V)
Single Supply Voltage (Min)	4.5(V)
Single Supply Voltage (Typ)	5(V)
Special Features	BREAK-BEFORE-MAKE
Supply Current	0.008 5.5V(mA)
Switch Control Logic	NOT REQUIRED
Switch Normal Position	NOT REQUIRED
Type	Analog Multiplexer
-3db Bandwidth	180MHz
Base Product Number	74HCT4051 ->,
Channel Capacitance (CS(off), CD(off))	3.5pF
Channel-to-Channel Matching (&Delta,Ron)	6Ohm
Current - Leakage (IS(off)) (Max)	400nA
ECCN	EAR99
HTSUS	8542.39.0001
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	120Ohm
Operating Temperature	-40В°C ~ 125В°C (TA)
Package	Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ®,
Package / Case	16-SOIC (0.154, 3.90mm Width)
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Supplier Device Package	16-SO
Switch Time (Ton, Toff) (Max)	39ns, 32ns
Voltage - Supply, Dual (VВ±)	В±1V ~ 5V
Voltage - Supply, Single (V+)	4.5V ~ 5.5V
Operating Supply Voltage	4.5V ~ 5.5V
Series	74HCT
Вес, г	0.32
