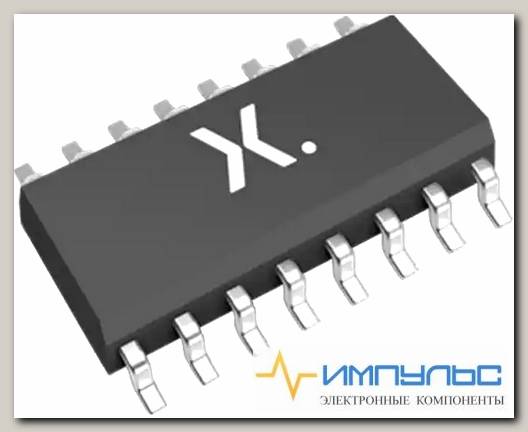

74HCT4094D,112 /Код si-549972
- Артикул: si-549972
Integrated Circuits (ICs)\Logic - Shift RegistersShift Shift Register 1 Element 8 Bit 16-SO
| Base Product Number | 74HCT4094 ->, |
| ECCN | EAR99 |
| Function | Serial to Parallel, Serial |
| HTSUS | 8542.39.0001 |
| Logic Type | Shift Register |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature | -40В°C ~ 125В°C |
| Output Type | Tri-State |
| Package | Tube |
| Package / Case | 16-SOIC (0.154, 3.90mm Width) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Series | 74HCT ->, |
| Supplier Device Package | 16-SO |
| Voltage - Supply | 4.5V ~ 5.5V |
| Absolute Propagation Delay Time (ns) | 65 |
| Automotive | No |
| Direction Type | Uni-Directional |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Logic Family | HCT |
| Logic Function | Shift Register/Latch |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 43 4.5V |
| Maximum Quiescent Current (mA) | 0.008 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Minimum Operating Temperature (°C) | -40 |
| Mounting | Surface Mount |
| Number of Count Input Enables | 0 |
| Number of Element Inputs | 1 |
| Number of Element Outputs | 10 |
| Number of Elements per Chip | 1 |
| Number of Selection Inputs per Element | 0 |
| Number of Stages | 8 |
| Operation Mode | Serial to Serial/Parallel |
| Packaging | Bulk |
| Parallel Enable Input | No |
| Part Status | LTB |
| PCB changed | 16 |
| Pin Count | 16 |
| PPAP | No |
| Process Technology | CMOS |
| Propagation Delay Test Condition (pF) | 50 |
| Supplier Package | SO |
| Terminal Count Output | No |
| Triggering Type | Positive-Edge |
| Typical Operating Supply Voltage (V) | 5 |
