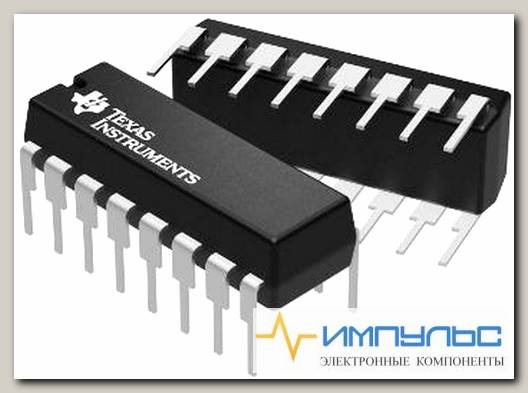

74LS165, Микросхема 8-бит PISO сдвиговый регистр DIP16 /Код si-548639
- Артикул: si-548639
Полупроводники\Микросхемы\Микросхемы логические\Сдвигающие регистрыShift Shift Register 1 Element 8 Bit 16-PDIP
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| PCB changed | 16 |
| Package Height | 5.08(Max) - 0.51(Min) |
| Lead Shape | Through Hole |
| Package Width | 6.6(Max) |
| Package Length | 19.69(Max) |
| Mounting | Through Hole |
| Logic Family | LS |
| Logic Function | Shift Register |
| Operation Mode | Serial/Parallel to Serial |
| Number of Elements per Chip | 1 |
| Number of Element Inputs | 9 |
| Number of Count Input Enables | 0 |
| Number of Selection Inputs per Element | 0 |
| Number of Element Outputs | 1 |
| Number of Stages | 8 |
| Direction Type | Uni-Directional |
| Triggering Type | Positive-Edge |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 25@5V |
| Absolute Propagation Delay Time (ns) | 35 |
| Process Technology | Bipolar |
| Minimum Operating Supply Voltage (V) | 4.75 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Propagation Delay Test Condition (pF) | 15 |
| Parallel Enable Input | Yes |
| Terminal Count Output | No |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Supplier Temperature Grade | Commercial |
| Packaging | Tube |
| Pin Count | 16 |
| Supplier Package | PDIP |
| Standard Package Name | DIP |
| Base Product Number | 74LS165 ->, |
| ECCN | EAR99 |
| Function | Parallel or Serial to Serial |
| HTSUS | 8542.39.0001 |
| Logic Type | Shift Register |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Through Hole |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature | 0В°C ~ 70В°C |
| Output Type | Complementary |
| Package | Tube |
| Package / Case | 16-DIP (0.300, 7.62mm) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Series | 74LS ->, |
| Supplier Device Package | 16-PDIP |
| Voltage - Supply | 4.75V ~ 5.25V |
| Вес, г | 0.98 |
