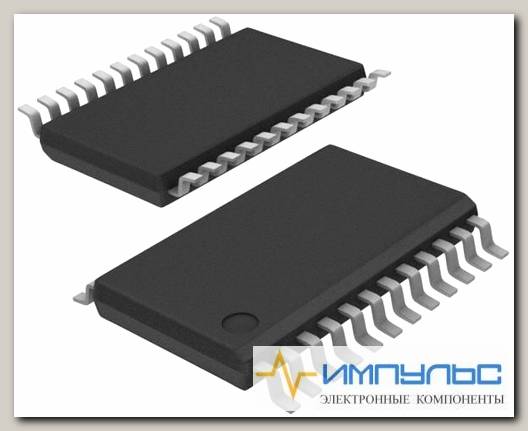

74LVX4245MTC, IC: цифровая, двунаправленный, трансивер,транслятор, Ch: 8, SMD /Код si-299058

TRANSCEIVER, 8BIT, TRI-STATE, TSSOP-24; Logic Family / Base Number:74LVX424; Logic Device Type:Transceiver, Translating; Logic Case Style:TSSOP; No. of Pins:24Pins; Supply Voltage Min:4.5V; Supply Voltage Max:5.5V; Logic IC Family:74LVX; Logic IC Base Number:74245; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018)

Bus Hold	No
Data Flow Direction	Bi-Directional
Fabrication Technology	CMOS
Input Level	CMOS
Lead Finish	Gold
Logic Function	Bus Transceiver with Voltage Translation
Max Processing Temp	260
Maximum High Level Output Current	-24 mA
Maximum Low Level Output Current	24 mA
Maximum Operating Supply Voltage	3.6/5.5 V
Maximum Propagation Delay Time @ Maximum CL	8.5 3.3V 5V ns
Maximum Quiescent Current	8 uA
Minimum Operating Supply Voltage	2.7I4.5 V
Mounting	Surface Mount
Number of Channels per Chip	8
Number of Direction Control Inputs	1 Low/High
Number of Elements per Chip	1
Number of Output Enables per Element	1 Low
Operating Temperature	-40 to 85 C
Output Level	CMOS
Output Type	3-State
Polarity	Non-Inverting
Propagation Delay Test Condition	50 pF
Typical Operating Supply Voltage	3.3/5 V
Вес, г	0.1
