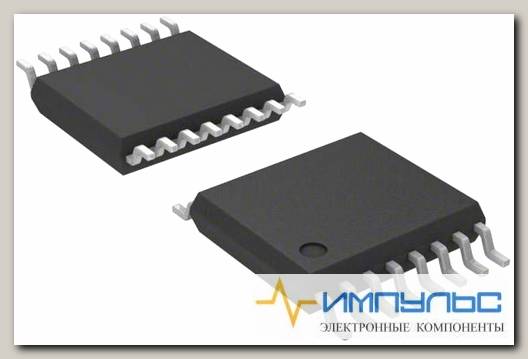

74VHC595MTC /Код si-542315

SHIFT REGISTER, SIPO, 8BIT, TSSOP-16; Logic Family / Base Number:74VHC595; Shift Register Function:Serial to Parallel; No. of Elements:1 Element; No. of Bits Per Element:8bit; Logic Case Style:TSSOP; No. of Pins:16Pins; Supply Voltage Min:2V; Supply Voltage Max:5.5V; IC Output Type:Tri State; Logic IC Family:74VHC; Logic IC Base Number:74595; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Logic Type:Shift Register; No. of Elements:1Elements

Direction Type	Uni-Directional
Logic Family	VHC
Logical Function	Shift Register
Maximum Propagation Delay Time @ Maximum CL	16.5 3.3V/10.2 5V
Mounting	Surface Mount
Number of Elements	1
Number of Bits	8
Number of Count Input Enables	0
Number of Inputs	1
Number of Outputs	9
Number of Selection Inputs per Element	0
Operating Supply Voltage (Max)	5.5(V)
Operating Supply Voltage (Min)	2(V)
Operating Supply Voltage (Typ)	2.5/3.3/5(V)
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Output Type	3-State
Package Type	TSSOP
Packaging	Rail/Tube
Parallel Enable Input	NO
Pin Count	16
Propagation Delay Time	18.5(ns)
Quiescent Current (Max)	0.004(mA)
Rad Hardened	No
Technology	CMOS
Terminal Count Output	NO
Triggering Type	POSITIVE-EDGE
Type	Not Required
Вес, г	0.14
