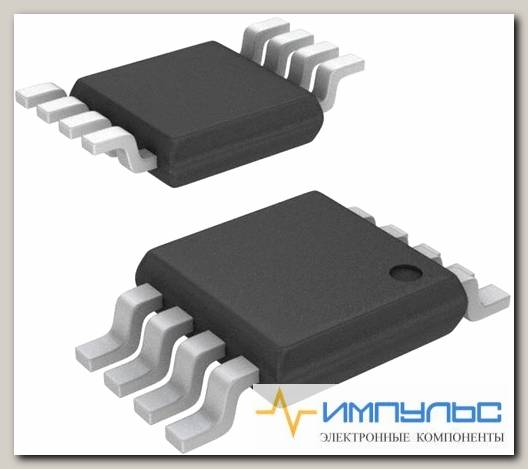

AD8214ARMZ /Код si-375690
- Артикул: si-375690
Микросхемы / Усилители и компараторы / КомпараторыВысоковольтный компаратор напряжения на токовом шунте с коротким временем отклика
| Корпус | msop8 |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Manufacturer Type | Current Shunt Comparator |
| Number of Channels per Chip | 1 |
| Maximum Propagation Delay Time (ns) | 90(Typ) |
| Maximum Operating Supply Voltage (V) | 65 |
| Maximum Input Offset Voltage (mV) | 3@13.5V |
| Minimum Single Supply Voltage (V) | 5 |
| Typical Single Supply Voltage (V) | 12|24|15|28|18|9 |
| Maximum Single Supply Voltage (V) | 65 |
| Maximum Input Bias Current (uA) | 0.03@13.5V |
| Maximum Supply Current (mA) | 1.2(Typ)@13.5V |
| Typical Output Current (mA) | 1@13.5V |
| Power Supply Type | Single |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Packaging | Tube |
| Standard Package Name | MSOP |
| Supplier Package | MSOP |
| Pin Count | 8 |
| Mounting | Surface Mount |
| Package Height | 0.85 |
| Package Length | 3 |
| Package Width | 3 |
| PCB changed | 8 |
| Lead Shape | Gull-wing |
| Base Product Number | AD8214 ->, |
| Current - Output | 1mA |
| ECCN | EAR99 |
| Function | Current Monitor |
| HTSUS | 8542.39.0001 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40В°C ~ 125В°C |
| Package | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Sensing Method | High-Side |
| Supplier Device Package | 8-MSOP |
| Video File | Introducing Power by Linear |
| Voltage - Input | 5V ~ 65V |
| Amplifier Type | Current Sense |
| Brand | Analog Devices |
| CMRR - Common Mode Rejection Ratio | 80 dB |
| Description/Function | High CMV threshold detector |
| Factory Pack Quantity | 1000 |
| Ib - Input Bias Current | 30 nA |
| Manufacturer | Analog Devices Inc. |
| Maximum Input Resistance | 5 MOhms |
| Maximum Operating Temperature | +125 C |
| Minimum Operating Temperature | -40 C |
| Mounting Style | SMD/SMT |
| Number of Channels | 1 Channel |
| Operating Supply Current | 1.2 mA |
| Output Current per Channel | 1 mA |
| Output Voltage | 2 V to 62.5 V |
| Product | Current Sense Amplifiers |
| Product Category | Current Sense Amplifiers |
| RoHS | Details |
| Series | AD8214 |
| Supply Type | Single |
| Supply Voltage - Max | 65 V |
| Supply Voltage - Min | 5 V |
| Topology | Current Shunt Feedback |
| Unit Weight | 0.004938 oz |
| Vcm - Common Mode Voltage | 5 V to 65 V |
| Vos - Input Offset Voltage | 3 mV |
| Вес, г | 0.06 |
