AD8226ARZ-R7 /Код si-854330

AD8226 is a low cost, wide supply range instrumentation amplifier. It requires only one external resistor to set any gain between 1 and 1000. It is designed to work with a variety of signal voltages. A wide input range and rail-to-rail output allow the signal to make full use of the supply rails. Because the input range also includes the ability to go below the negative supply, small signals near ground can be amplified without requiring dual supplies. The robust amplifier inputs are designed to connect to real world sensors. In addition to its wide operating range, the amplifier can handle voltages beyond the rails. It is mainly used in application such as industrial process controls, bridge amplifiers, medical instrumentation, portable data acquisition, multichannel systems etc. • Input voltage goes below ground• Inputs protected beyond supplies• Single supply is 2.2V to 36V, dual supply is ±1.35V to ±18V• Bandwidth (G = 1) is 1.5MHz• CMRR (G = 1) is 86dB minimum• Input noise is 22nV/vHz, current noise is 100fA/vHz at (f = 1kHz)• Supply current is 350µA typ at (TA = +25°C)• Slew rate(G = 1) is 0.4V/µs• Operating temperature range is -40°C to +125°C• Packaging style is 8-lead SOIC• N

Выход Усилителя	Полный Размах Напряжения
Диапазон Напряжения Питания	±1.35V to±18V, 2.2V to 36V
Количество Выводов	8вывод(-ов)
Количество Усилителей	1 Усилитель
Коэффициент Подавления Синфазного Сигнала	120дБ
Линейка Продукции	-
Максимальная Рабочая Температура	125°C
Минимальная Рабочая Температура	-40°C
Напряжение Входного Смещения	100мкВ
Полоса Пропускания	1.5МГц
Скорость Нарастания	0.6В/мкс
Стандарты Автомобильной Промышленности	-

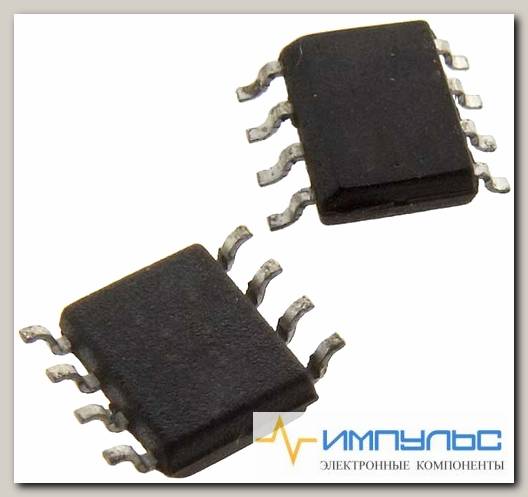

Стиль Корпуса Усилителя	NSOIC
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
