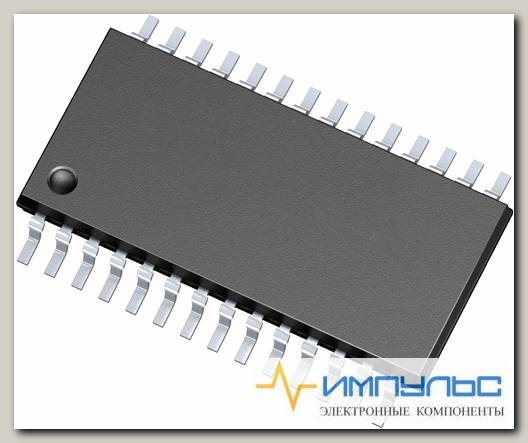

AD8348ARUZ /Код si-710614
- Артикул: si-710614
Modulator / Demodulator IF QUADRATURE DEMODULATOR
| Brand | Analog Devices |
| Development Kit | AD8348-EVALZ |
| Factory Pack Quantity | 50 |
| Height | 1.2 mm |
| Length | 9.8 mm |
| Manufacturer | Analog Devices Inc. |
| Maximum Frequency | 1000 MHz |
| Maximum Operating Temperature | +85 C |
| Minimum Frequency | 50 MHz |
| Minimum Operating Temperature | -40 C |
| Modulation Format | Quadrature |
| Mounting Style | SMD/SMT |
| Operating Supply Current | 48 mA |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Package / Case | TSSOP-28 |
| Packaging | Tube |
| Pd - Power Dissipation | 450 mW |
| Product Category | Modulator/Demodulator |
| RoHS | Details |
| Series | AD8348 |
| Type | Demodulator |
| Width | 4.5 mm |
| EU RoHS | Compliant |
| ECCN (US) | 5A991.b |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Device Type | Demodulator |
| Modulation Type | Quadrature |
| Programmability | No |
| Maximum I/Q Frequency (MHz) | 75(Typ) |
| Maximum Conversion Gain (dB) | 25.5(Typ) |
| Typical Noise Figure (dB) | 10.75 |
| Minimum Operating Supply Voltage (V) | 2.7 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Supply Current (A) | 0.058 |
| Maximum Power Dissipation (mW) | 450 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Pin Count | 28 |
| Supplier Package | TSSOP |
| Standard Package Name | SOP |
| Mounting | Surface Mount |
| Package Height | 1.05(Max) |
| Package Length | 9.7 |
| Package Width | 4.4 |
| PCB changed | 28 |
| Lead Shape | Gull-wing |
