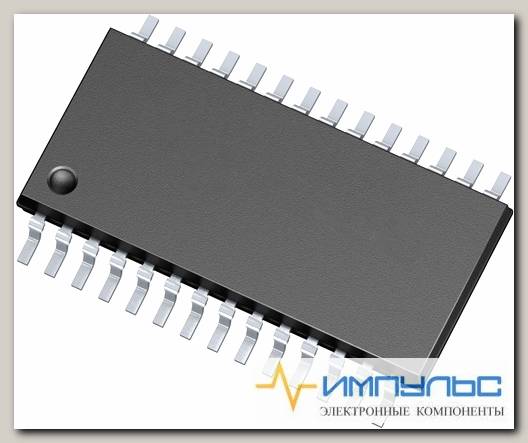

AD9203ARUZ /Код si-239135
- Артикул: si-239135
ADC, Proprietary Method, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PDSO28
| Architecture | Pipelined |
| Differential Input | Yes |
| Differential Linearity Error | ±0.7LSB |
| Digital Supply Support | YES |
| Dual Supply Voltage (Max) | Not Required(V) |
| Dual Supply Voltage (Min) | Not Required(V) |
| Dual Supply Voltage (Typ) | Not Required(V) |
| Full Scale Error | ±4%FSR |
| Input Polarity | Unipolar |
| Input Type | Voltage |
| Integral Nonlinearity Error | ±1.4LSB(LSB) |
| Interface Type | Parallel |
| Mounting | Surface Mount |
| Number of Elements | 1 |
| Number of Input Channels | 1 |
| Operating Temp Range | -40C to 85C |
| Operating Temperature Classification | Industrial |
| Package Type | TSSOP |
| Packaging | Tape and Reel |
| Pin Count | 28 |
| Power Dissipation | 108(W) |
| Power Supply Requirement | Analog and Digital |
| Rad Hardened | No |
| Rated Input Volt | 2VP-P |
| Reference Voltage | INTERNAL/EXTERNAL(V) |
| Resolution | 10Bit |
| Sample and Hold | YES |
| Sample Rate | 40MSPS(KSPS) |
| Signal to Noise Ratio | 60DB(TYP) |
| Single Supply Voltage (Max) | 3.6(V) |
| Single Supply Voltage (Min) | 2.7(V) |
| Single Supply Voltage (Typ) | 3(V) |
| Single-Ended Input | YES |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Converter Type | Video |
| Number of ADCs | 1 |
| Sampling Rate | 40Msps |
| Digital Interface Type | Parallel |
| Input Signal Type | Differential|Single-Ended |
| Voltage Reference | Internal|External |
| Polarity of Input Voltage | Unipolar |
| Voltage Supply Source | Analog and Digital |
| Input Voltage | 2Vp-p |
| Minimum Single Supply Voltage (V) | 2.7 |
| Typical Single Supply Voltage (V) | 3 |
| Maximum Single Supply Voltage (V) | 3.6 |
| Supplier Temperature Grade | Industrial |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Standard Package Name | SOP |
| Supplier Package | TSSOP |
| Package Height | 1.05(Max) |
| Package Length | 9.7 |
| Package Width | 4.4 |
| PCB changed | 28 |
| Lead Shape | Gull-wing |
| Base Product Number | AD9203 ->, |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 10 |
| Number of Inputs | 1 |
| Operating Temperature | -40В°C ~ 85В°C |
| Package | Tube |
| Package / Case | 28-TSSOP (0.173, 4.40mm Width) |
| Ratio - S/H:ADC | 1:1 |
| REACH Status | REACH Unaffected |
| Reference Type | External, Internal |
| RoHS Status | ROHS3 Compliant |
| Sampling Rate (Per Second) | 40M |
| Supplier Device Package | 28-TSSOP |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Single Supply Voltage | 3 V |
