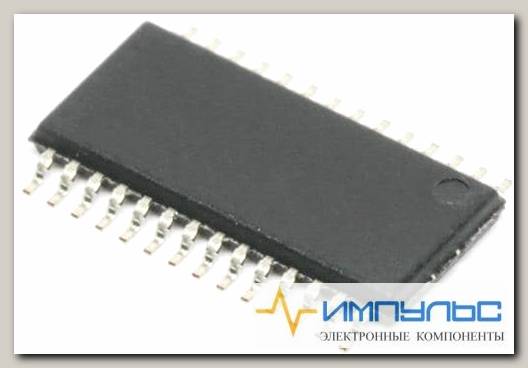

AD9235BRUZ-20 /Код si-230889
- Артикул: si-230889
Микросхемы / ЦАП, АЦП, Кодеки, Преобразователи / Аналого-Цифровые Преобразователи (АЦП)АЦП 12-бит одноканальный 20MSPS
| Корпус | tssop28 |
| Architecture | Pipelined |
| Base Product Number | AD9235 ->, |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Input Type | Differential, Single Ended |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Inputs | 1 |
| Operating Temperature | -40В°C ~ 85В°C |
| Package | Tube |
| Package / Case | 28-TSSOP (0.173, 4.40mm Width) |
| Ratio - S/H:ADC | 1:1 |
| REACH Status | REACH Unaffected |
| Reference Type | External, Internal |
| RoHS Status | ROHS3 Compliant |
| Sampling Rate (Per Second) | 20M |
| Supplier Device Package | 28-TSSOP |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.25V ~ 3.6V |
| Analogue Supply Voltage: | 3 V |
| Architecture: | Pipeline |
| Brand: | Analog Devices |
| Digital Supply Voltage: | 3 V |
| DNL - Differential Nonlinearity: | +/-0.65 LSB |
| Factory Pack Quantity: Factory Pack Quantity: | 50 |
| Gain Error: | +/-2.4%FSR |
| INL - Integral Nonlinearity: | +/-0.8 LSB |
| Input Type: | Differential/Single-Ended |
| Input Voltage: | 1 Vp-p/2 Vp-p |
| Interface Type: | Parallel |
| Manufacturer: | Analog Devices Inc. |
| Maximum Operating Temperature: | +85 C |
| Minimum Operating Temperature: | -40 C |
| Mounting Style: | SMD/SMT |
| Number of ADC Inputs: | 1 Input |
| Number of Channels: | 1 Channel |
| Number of Converters: | 1 Converter |
| Operating Supply Voltage: | 3.3 V |
| Package/Case: | TSSOP-28 |
| Packaging: | Tube |
| Pd - Power Dissipation: | 350 mW |
| Power Consumption: | 95 mW |
| Product Category: | Analog to Digital Converters-ADC |
| Product Type: | ADCs-Analog to Digital Converters |
| Reference Type: | External, Internal |
| Resolution: | 12 bit |
| Sample and Hold: | Yes |
| Sampling Rate: | 20 MS/s |
| Series: | AD9235 |
| SNR - Signal to Noise Ratio: | 70.8 dB |
| Subcategory: | Data Converter ICs |
| Type: | S/H ADC |
| Вес, г | 1.35 |
