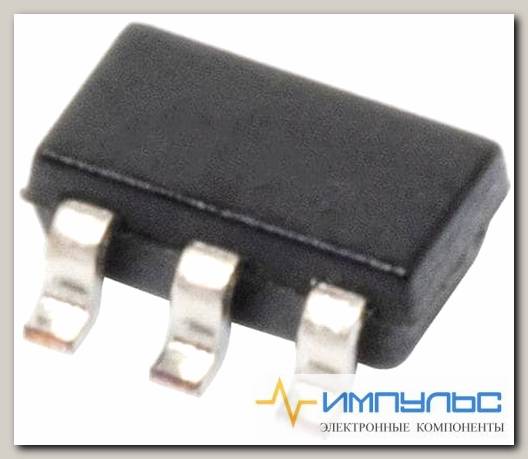

ADA4622-1ARJZ-R2, Op Amp Single Low Bias Current Amplifier R-R O/P ±15V/30V 5-Pin SOT-23 T/R /Код si-857213

Lithium Ion Battery Formation & Test SolutionsAnalog Devices Inc. Lithium Ion Battery Formation and Test Solutions offer a small, environmental-friendly system for testing and forming rechargeable battery cells and packs. The offering uses a PWM controller to provide charging energy. With these solutions from Analog Devices, designers can direct discharging energy to other cells or send the energy back to the grid to minimize energy usage.

Brand:	Analog Devices
CMRR - Common Mode Rejection Ratio:	84 dB
en - Input Voltage Noise Density:	12 nV/sqrt Hz
Factory Pack Quantity: Factory Pack Quantity:	250
GBP - Gain Bandwidth Product:	8 MHz
Ib - Input Bias Current:	2 pA
Manufacturer:	Analog Devices Inc.
Maximum Operating Temperature:	+125 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Channels:	1 Channel
Operating Supply Current:	715 uA
Output Current per Channel:	20 mA
Package/Case:	SOT-23-5
Packaging:	Reel, Cut Tape, MouseReel
Product Category:	Precision Amplifiers
Product Type:	Precision Amplifiers
Series:	ADA4622-1
Shutdown:	Shutdown
SR - Slew Rate:	23 V/us
Subcategory:	Amplifier ICs
Supply Voltage - Max:	30 V
Supply Voltage - Min:	4.5 V
Vos - Input Offset Voltage:	40 uV
