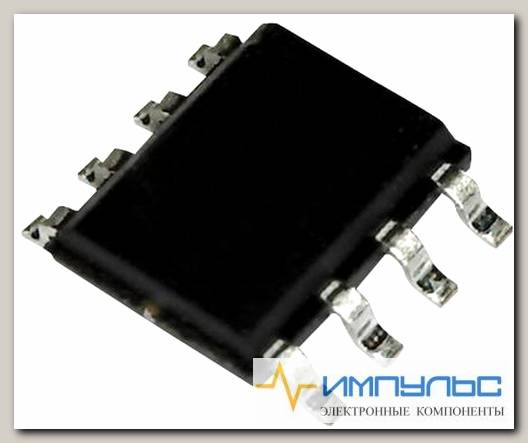

ADM3061EARZ, Single Transmitter/Receiver RS-485 8-Pin SOIC N Tube /Код si-304359

ADM3061E is an IEC electrostatic discharge (ESD) protected RS-485 transceiver. It allows the device to withstand ±12kV contact discharges on the transceiver bus pins without latch-up or damage. It is widely used in application such as industrial fieldbuses, process control, building automation, PROFIBUS networks, motor control servo drives and encoders etc. • Operating voltage range is 3.0V to 5.5V• Full hot swap support (glitch free power-up and power-down)• Full receiver short-circuit, open circuit, and bus idle fail-safe• PROFIBUS compliant at VCC>= 4.5V• Operating temperature range is -40°C to +85°C• Maximum data rate is 500kbps• Half duplex• Packaging style is 8-lead SOIC

Количество Выводов	8вывод(-ов)
Количество Приводов	1драйвер(-ов)
Количество Приемников	1Receivers
Максимальная Рабочая Температура	85 C
Максимальное Напряжение Питания	5.5В
Минимальная Рабочая Температура	-40 C
Минимальное Напряжение Питания	3В
Стиль Корпуса Привода	SOIC
Тип Интерфейса ИС	RS485
Тип Устройства	RS485 Приемопередатчик
Универсальный Номер Микросхемы	ADM3061E
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
Automotive	No
Driving Mode	3-State
Maximum Single Supply Voltage - (V)	5.5
Military	No
Minimum Single Supply Voltage - (V)	3
Number of Receivers	1
Number of Transceivers	1
Number of Transmitters	1
Operating Temperature - (??C)	-40~85
Packaging	Tube
Pin Count	8
Power Supply Type	Single
Receiver Communication Type	RS-485
Receiver Signal Type	Differential
Standard Package Name	SOP
Supplier Package	SOIC N
Transmitter Signal Type	Differential
