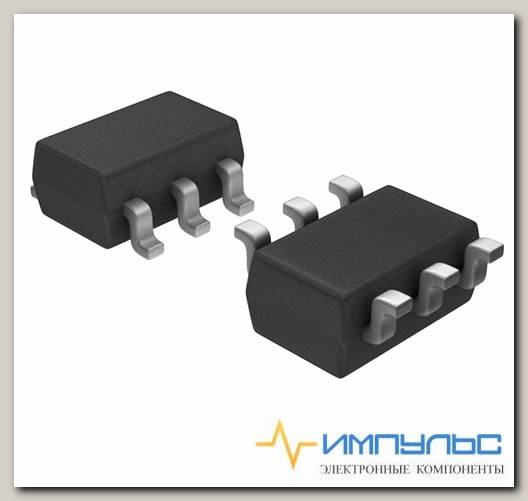

ADM4073HWRJZ /Код si-859011
- Артикул: si-859011
SP Amp Current Sense Amp Single 28V Автомобильный 6-контактный SOT-23 T / R
| Accuracy | 1% |
| Amplifier Type | Current Sense |
| Brand | Analog Devices |
| CMRR - Common Mode Rejection Ratio | 90 dB |
| Description/Function | High-Side current sense amplifiers |
| Factory Pack Quantity | 3000 |
| GBP - Gain Bandwidth Product | 1.8 MHz |
| Height | 1.15 mm |
| Ib - Input Bias Current | 120 uA |
| Length | 2.9 mm |
| Manufacturer | Analog Devices Inc. |
| Maximum Operating Temperature | +125 C |
| Minimum Operating Temperature | -40 C |
| Mounting Style | SMD/SMT |
| Number of Channels | 1 Channel |
| Operating Supply Current | 500 uA |
| Operating Supply Voltage | 5 V, 9 V, 12 V, 15 V, 18 V, 24 V |
| Output Voltage | 0.8 V |
| Package / Case | SOT-23-6 |
| Packaging | Reel |
| Product | Current Sense Amplifiers |
| Product Category | Current Sense Amplifiers |
| PSRR - Power Supply Rejection Ratio | 90 dB |
| RoHS | Details |
| Series | ADM4073 |
| Supply Type | Single |
| Supply Voltage - Max | 28 V |
| Supply Voltage - Min | 3 V |
| Vcm - Common Mode Voltage | 2 V to 28 V |
| Voltage Gain dB | 40 dB |
| Vos - Input Offset Voltage | 1 mV |
| Width | 1.6 mm |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Package Width | 1.6 |
| Package Length | 2.9 |
| Lead Shape | Gull-wing |
| PCB changed | 6 |
| Package Height | 1.15 |
| Mounting | Surface Mount |
| Type | Current Sense Amplifier |
| Number of Elements per Chip | 1 |
| Number of Channels per Chip | 1 |
| Maximum Voltage Gain Range (dB) | 35 to 50 |
| Maximum Voltage Gain (dB) | 40 |
| Minimum PSRR (dB) | 90(Typ) |
| Typical Output Current (mA) | 20(Max) |
| Maximum Input Offset Voltage (mV) | 1(Typ)@28V |
| Maximum Operating Supply Voltage (V) | 28 |
| Maximum Supply Voltage Range (V) | 20 to 30 |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 24|9|15|12|5|18 |
| Maximum Single Supply Voltage (V) | 28 |
| Maximum Input Bias Current (uA) | 60@28V |
| Maximum Supply Current (mA) | 1.2@28V |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Automotive |
| Pin Count | 6 |
| Supplier Package | SOT-23 |
| Standard Package Name | SOT-23 |
| Power Supply Type | Single |
