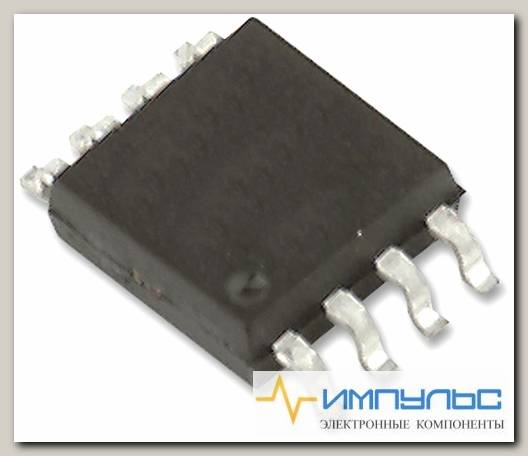

ADR3525WARMZ-R7, V-Ref Precision 2.5V 10mA Automotive 8-Pin MSOP T/R /Код si-329035

ADR3525 is a low cost, low power, high precision CMOS voltage reference. For high accuracy, the output voltage and temperature coefficient are trimmed digitally during final assembly using the Analog Devices, Inc., proprietary DigiTrim® technology. The low output voltage hysteresis and low long-term output voltage drift improve lifetime system accuracy. It is widely used in application such as automotive battery monitors, portable instrumentation, process transmitters, remote sensors, medical instrumentation etc. • Temperature coefficient is 2.5ppm/°C typ• Low long-term drift (LTD) is 30ppm (initial 1khr typical)• Initial output voltage error is ±0.1% (maximum)• Output current is +10mA source/-3mA sink• Low quiescent current is 100µA maximum• Low dropout voltage is 250mV at 2mA• Output voltage noise is 18µV p-p at (0.1Hz to 10Hz)• Output voltage is 2.5V• Operating temperature range is -40°C to +125°C, qualified for automotive application• Packaging style is 8-lead MSOP

Количество Выводов	8вывод(-ов)
Линейка Продукции	ADR3525 Series
Максимальная Рабочая Температура	125 C
Минимальная Рабочая Температура	-40 C
Номинальная Точность	0.1%
Опорное Напряжение	2.5В
Стиль Корпуса Источника Опорного Напряжения	MSOP
Температурный Коэффициент	2.5млн-11/C
Тип Источника Опорного Напряжения	Последовательный-Фиксированный
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
