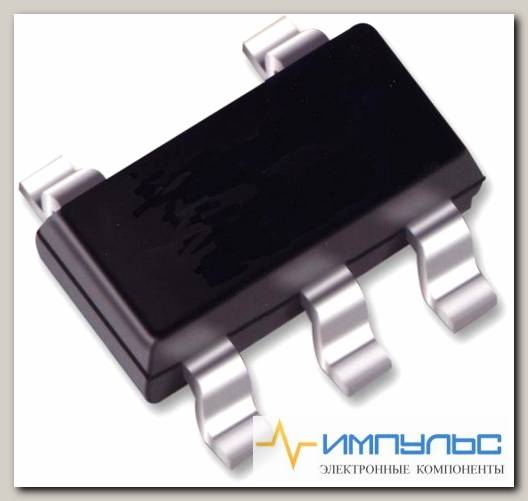

ADR363BUJZ-REEL7, V-Ref Precision 3V 5mA 5-Pin TSOT T/R /Код si-330058

ADR363 is a low power, low noise voltage reference with sink/source capability. This precision band gap voltage reference that offers low power and high precision in a compact package. Using proprietary temperature drift curvature correction techniques from Analog Devices, Inc., the device reference achieves a low temperature drift. This micropower, low dropout voltage reference provides a stable output voltage from a minimum supply of 300mV greater than the output. The advanced design of the devices eliminates the need for external capacitors, which further reduces board space and system cost. The combination of low power operation, small size, and ease of use makes this precision voltage reference device ideally suited for battery-operated applications. Applications include battery-powered instruments, portable medical instruments, data acquisition systems and industrial. • Low quiescent current of 190µA maximum• No external capacitor required• Output current of +5mA (sourcing), -1mA (sinking)• Typical output voltage of 3V• Initial accuracy of ±0.1% (±3mV)• Temperature coefficient of 9ppm/°C at -40°C < TA < +125°C• Dropout voltage of 300mV (minimum), voltage noise of 8.7µVp-p ( 0.1Hz to 10Hz)• Ripple rejection ratio of -70dB (fIN = 60Hz)• Turn-on settling time of 25µs• 5-lead TSOT package, -40°C to +125°C temperature range

Количество Выводов	5вывод(-ов)
Линейка Продукции	ADR363 Series
Максимальная Рабочая Температура	125 C
Минимальная Рабочая Температура	-40 C
Номинальная Точность	3мВ
Опорное Напряжение	3В
Стиль Корпуса Источника Опорного Напряжения	TSOT
Температурный Коэффициент	9ppm/C
Тип Источника Опорного Напряжения	Последовательный-Фиксированный
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
