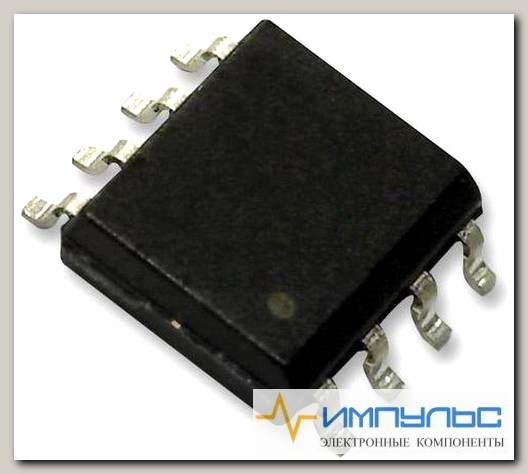

BV1HD090FJ-CE2, Переключатель нагрузки, AECQ100, высокой стороны, активный высокий, 2 выхода, 5.5В, 900мА, 0.09Ом /Код si-397173

Полупроводники - Микросхемы\Микросхемы Управления Питанием\Коммутаторы ПитанияAutomotive Switch ICsROHM Semiconductor Automotive Switch ICs integrate a low ON-resistance MOSFET and multiple protection circuits on a single chip. This results in a low loss, high efficiency, stable, and reliable operation. The AEC-Q100 qualified ICs consists of power management ICs and Intelligent Power Devices (IPDs) with smart low side or high side switch ICs. These IPDs have several advantages over mechanical relays. They have better protection and recovering function from an electrical short. They offer FIT (Failure In Time) rate improvement by a non-mechanical approach. They also space saving solutions in the compact packages that are offered. These switch ICs are available from single-channel to multi-channel high side switches for broad compatibility. The automotive switch ICs come in various different packages to match the requirements of the designers.

ВКЛ. / Полярность Разрешающего Входа	-
Входное Напряжение	36В
Количество Выводов	8вывод(-ов)
Количество Выходов	1выход(-ов)
Линейка Продукции	IPD
Максимальная Рабочая Температура	150°C
Минимальная Рабочая Температура	-40°C
Ограничение Тока	5.5А
Сопротивление Включенного Состояния	0.09Ом
Стиль Корпуса Коммутатора-распределителя	SOP-J
Тепловая Защита	Да
Тип Переключателя Силовой Нагрузки	Сторона Высокого Напряжения
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
Brand:	ROHM Semiconductor
Current Limit:	5.5 A
Factory Pack Quantity: Factory Pack Quantity:	2500
Manufacturer:	ROHM Semiconductor
Maximum Operating Temperature:	+150 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Outputs:	1 Output
Off Time - Max:	90 us
On Resistance - Max:	120 mOhms
On Time - Max:	33 us
Operating Supply Voltage:	4.5 V to 36 V
Output Current:	9 A
Package/Case:	SOP-J8
Packaging:	Reel, Cut Tape, MouseReel
Part # Aliases:	BV1HD090FJ-C
Product Category:	Power Switch ICs-Power Distribution
Product Type:	Power Switch ICs-Power Distribution
Product:	Power Switches
Qualification:	AEC-Q100
Subcategory:	Switch ICs
Supply Voltage - Max:	36 V
Supply Voltage - Min:	4.5 V
Type:	High Side
Вес, г	0.83
