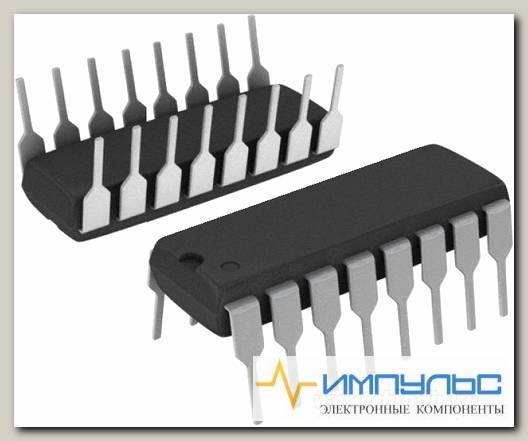

CD4020BE /Код si-676359

IC, 4000 CMOS, 4020, DIP16, 18V; Logic Family / Base Number:CD4020; Counter Type:Binary; Clock Frequency:24MHz; Count Maximum:16383; Logic Case Style:DIP; No. of Pins:16Pins; Supply Voltage Min:3V; Supply Voltage Max:18V; Logic IC Family:CD4000; Logic IC Base Number:4020; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:CD4000 LOGIC Series; MSL:-; SVHC:No SVHC (15-Jan-2019); Base Number:4020; Count Max:14; Device Marking:4020; IC Generic Number:4020; Logic Function Number:4020; Logic IC Base Number:4020; Logic IC Function:14-Stage Ripple Carry Binary Counter; No. of Gates:1; No. of Inputs:1; Operating Temperature Range:-55°C to +125°C; Supply Voltage Range:3V to 18V; Termination Type:Through Hole

Features	Asynchronous Reset
Logic Type	Binary Counter
Number Of Circuits	1
Operating Supply Voltage	3V ~ 18V
Series	4000B
Automotive	No
Direction Type	Uni-Directional
Maximum Operating Supply Voltage - (V)	18
Military	No
Minimum Operating Supply Voltage - (V)	3
Number of Element Inputs	1
Number of Element Outputs	12
Number of Elements per Chip	1
Number of Stages	14
Operating Temperature - (??C)	-55~125
Operation Mode	UP Counter
Packaging	Tube
Pin Count	16
Process Technology	CMOS
Standard Package Name	DIP
Supplier Package	PDIP
Triggering Type	Negative-Edge
Вес, г	1
