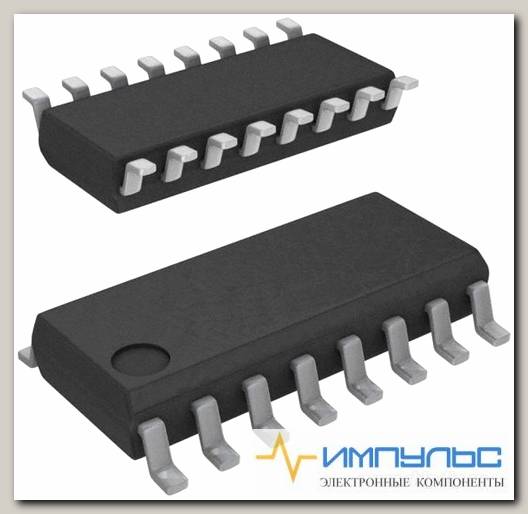

CD4029BM /Код si-675708

LOGIC, PRESET UP/DWN COUNTER, 16SOIC; Logic Family / Base Number:CD4029; Counter Type:Binary / BCD, Up / Down; Clock Frequency:11MHz; Count Maximum:15; Logic Case Style:SOIC; No. of Pins:16Pins; Supply Voltage Min:3V; Supply Voltage Max:18V; Logic IC Family:CD4000; Logic IC Base Number:4029; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Logic IC Base Number:4029; Logic IC Function:Presettable Up / Down Counter; Termination Type:Surface Mount Device

Direction Type	Bi-Directional
Logic Family	4000
Logical Function	Counter
Mounting	Surface Mount
Number of Elements	1
Number of Bits	4
Number of Count Input Enables	0
Number of Inputs	4
Number of Outputs	4
Number of Selection Inputs per Element	0
Operating Supply Voltage (Max)	18(V)
Operating Supply Voltage (Min)	3(V)
Operating Supply Voltage (Typ)	3.3/5/9/12/15(V)
Operating Temp Range	-55C to 125C
Operating Temperature Classification	Military
Package Type	SOIC
Packaging	Rail/Tube
Parallel Enable Input	YES
Pin Count	16
Preset Type	ASYNCHRONOUS
Propagation Delay Time	560(ns)
Quiescent Current (Max)	0.1(mA)
Rad Hardened	No
Technology	CMOS
Terminal Count Output	YES
Triggering Type	POSITIVE-EDGE
Type	Binary/Decade
Вид монтажа	SMD/SMT
Выходной ток	+/- 1.5 mA
Диапазон рабочих температур	55 C to + 125 C
Категория продукта	ИС, счетчики
Количество цифровых разрядов	4 bit
Максимальная рабочая температура	+ 125 C
Минимальная рабочая температура	55 C
Подкатегория	Counter ICs
Последовательность счёта	Up/Down
Рабочее напряжение питания	3 V to 18 V
Размер фабричной упаковки	40
Семейство логических элементов	CD4000
Серия	CD4029B
Тип продукта	Counter ICs
Тип счётчика	Binary, Decade
Торговая марка	Texas Instruments
Упаковка	Tube
Упаковка / блок	SOP-16
Функция	Counter
Base Product Number	CD4029 ->,
Count Rate	11MHz
Direction	Up, Down
ECCN	EAR99
HTSUS	8542.39.0001
Logic Type	Binary Counter, Decade
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	1
Operating Temperature	-55В°C ~ 125В°C
Package	Tube
Package / Case	16-SOIC (0.154, 3.90mm Width)
REACH Status	REACH Unaffected
Reset	Asynchronous
RoHS Status	ROHS3 Compliant
Series	4000B ->,
Supplier Device Package	16-SOIC
Timing	Synchronous
Trigger Type	Positive Edge
Voltage - Supply	3V ~ 18V
Вес, г	0.39
