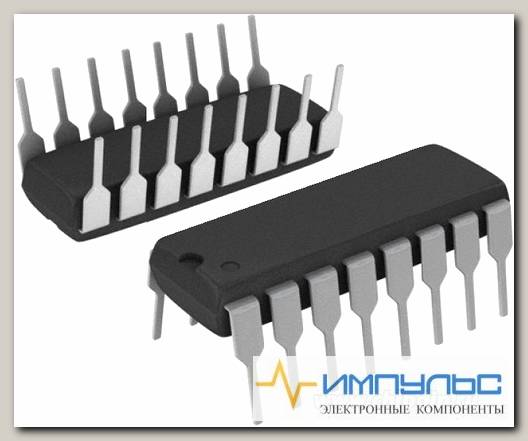

CD4040BE, Counter/Divider Single 12-Bit Binary UP 16-Pin PDIP Tube /Код si-537665

Semiconductor - IC > Standard Logic > Arithmetic - Counter/Shift RegIC, 4000 CMOS, 4040, DIP16, 18V; Logic Family / Base Number:CD4040; Counter Type:Ripple Carry Binary / Divider; Clock Frequency:24MHz; Count Maximum:4095; Logic Case Style:DIP; No. of Pins:16Pins; Supply Voltage Min:3V; Supply Voltage Max:18V; Logic IC Family:CD4000; Logic IC Base Number:4040; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:CD4000 LOGIC Series; MSL:-; SVHC:No SVHC (15-Jan-2019); Base Number:4040; Count Max:12; Device Marking:CD4040BE; IC Generic Number:4040; Logic Function Number:4040; Logic IC Base Number:4040; Logic IC Function:12-Stage Ripple Carry Binary Counter; No. of Gates:1; No. of Inputs:1; Operating Temperature Range:-55°C to +125°C; Supply Voltage Range:3V to 18V; Termination Type:Through Hole

Features	Asynchronous Reset
Logic Type	Binary Counter
Number Of Circuits	1
Number Of Inputs/Bits Per Element	12
Operating Supply Voltage	3V ~ 18V
Series	4000B
Automotive	No
Direction Type	Uni-Directional
Maximum Operating Supply Voltage - (V)	18
Military	No
Minimum Operating Supply Voltage - (V)	3
Number of Element Inputs	1
Number of Element Outputs	12
Number of Elements per Chip	1
Number of Stages	12
Operating Temperature - (??C)	-55~125
Operation Mode	UP Counter
Packaging	Tube
Pin Count	16
Process Technology	CMOS
Standard Package Name	DIP
Supplier Package	PDIP
Triggering Type	Negative-Edge
Brand:	Texas Instruments
Counter Type:	Binary
Counting Sequence:	Up
Factory Pack Quantity: Factory Pack Quantity:	25
Function:	Counter
Logic Family:	CD4000
Manufacturer:	Texas Instruments
Maximum Operating Temperature:	+125 C
Minimum Operating Temperature:	-55 C
Mounting Style:	Through Hole
Number of Bits:	12 bit
Operating Supply Voltage:	3 V to 18 V
Operating Temperature Range:	-55 C to+125 C
Output Current:	+/-1.5 mA
Package/Case:	PDIP-16
Packaging:	Tube
Product Category:	Counter ICs
Product Type:	Counter ICs
Series:	CD4040B
Subcategory:	Counter ICs
