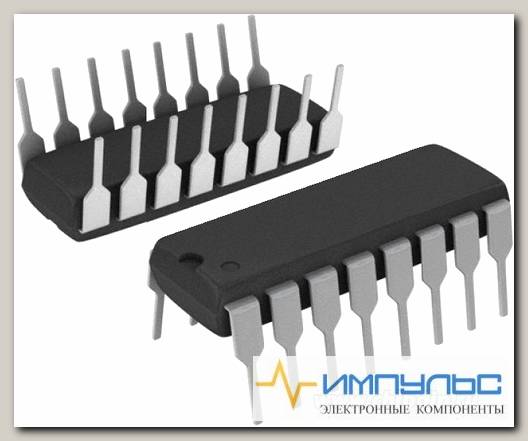

CD4555BE, Дешифратор/декодер (=КР1561ИД6), [PDIP-16] /Код si-497923

LOGIC, DECODER/DEMUX DUAL, 16DIP; Logic Family / Base Number:CD4555; Logic Type:Decoder / Demultiplexer; No. of Outputs:4Outputs; Logic Case Style:DIP; No. of Pins:16Pins; Supply Voltage Min:3V; Supply Voltage Max:18V; Logic IC Family:CD4000; Logic IC Base Number:4555; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2019); Applications:Decoding, Code Conversion, Demultiplexing, Memory Chip-Enable Selection; IC Applications:Code Conversion, Decoding, Demultiplexing, Memory Chip-Enable Selection; Logic IC Base Number:4555; Logic IC Function:Dual Binary to 1-of-4 Decoder / Demultiplexer; Operating Temperature Range:-55°C to +125°C; Output Current Max:6.8mA; Supply Voltage Range:3V to 18V; Termination Type:Through Hole

Серия	4000B
Тип	decoder/demultiplexer
Схема	1x2:4
Кол-во каналов	2
Максимальный выходной ток: High/Low, мА	-6.8/6.8
Напряжение питания, В	3…18
Рабочая температура, °C	-55…+125
Корпус	dip-16(7.62мм)
Вес, г	2.1
