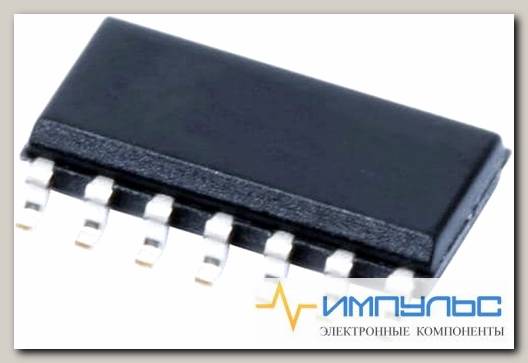

CD74HC32M /Код si-484190

IC, SM, LOGIC, 74HC, OR GATE; Logic Family / Base Number:74HC32; Logic Type:OR; Output Current:5.2mA; No. of Inputs:2; Supply Voltage Min:2V; Supply Voltage Max:6V; Logic Case Style:SOIC; No. of Pins:14Pins; Logic IC Family:74HC; Logic IC Base Number:7432; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Fall Time tf:400ns; Logic Function Number:7432; Logic IC Base Number:7432; Logic IC Function:High Speed CMOS Logic Quad 2-Input OR Gate; Operating Temperature Range:-55°C to +125°C; Propagation Delay:7ns; Rise Time:400ns; Supply Voltage Range:2V to 6V; Termination Type:Surface Mount Device

Brand	Texas Instruments
Factory Pack Quantity	50
Function	HS CMOS Quad 2-Input
Height	1.58 mm
High Level Output Current	-5.2 mA
Input Type	CMOS
Length	8.65 mm
Logic Family	HC
Logic Function	OR
Logic Type	2-Input OR
Low Level Output Current	5.2 mA
Manufacturer	Texas Instruments
Maximum Operating Temperature	+125 C
Minimum Operating Temperature	-55 C
Mounting Style	SMD/SMT
Number of Bits	4 bit
Number of Gates	4 Gate
Number of Input Lines	2 Input
Number of Output Lines	1 Output
Operating Supply Current	20 uA
Operating Supply Voltage	5 V
Operating Temperature Range	-55 C to+125 C
Output Type	CMOS
Package / Case	SOIC-14
Packaging	Tube
Product	Single-Function Gate
Product Category	Logic Gates
Propagation Delay Time	23 ns
RoHS	Details
Series	CD74HC32
Supply Voltage - Max	6 V
Supply Voltage - Min	2 V
Unit Weight	0.004564 oz
Width	3.91 mm
Brand:	Texas Instruments
Factory Pack Quantity: Factory Pack Quantity:	50
Function:	HS CMOS Quad 2-Input
High Level Output Current:	-5.2 mA
Input Type:	CMOS
Logic Family:	HC
Logic Function:	OR
Logic Type:	2-Input OR
Low Level Output Current:	5.2 mA
Manufacturer:	Texas Instruments
Maximum Operating Temperature:	+125 C
Minimum Operating Temperature:	-55 C
Mounting Style:	SMD/SMT
Number of Bits:	4 bit
Number of Gates:	4 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
Operating Supply Current:	20 uA
Operating Supply Voltage:	5 V
Operating Temperature Range:	-55 C to+125 C
Output Type:	CMOS
Package/Case:	SOIC-14
Packaging:	Tube
Product Category:	Logic Gates
Product Type:	Logic Gates
Product:	Single-Function Gate
Propagation Delay Time:	23 ns
Series:	CD74HC32
Subcategory:	Logic ICs
Supply Voltage - Max:	6 V
Supply Voltage - Min:	2 V
Вес, г	0.34
