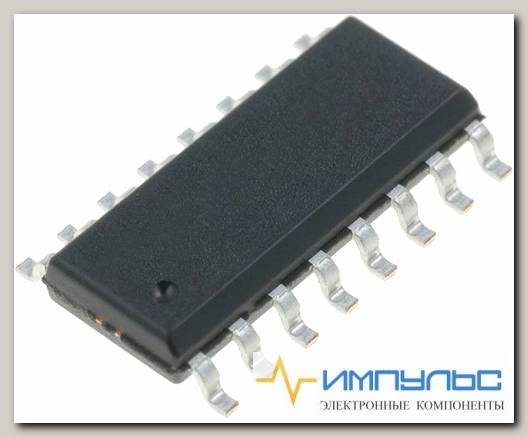

CD74HC597M /Код si-545632

LOGIC, SHIFT REGISTER 8BIT, 16SOIC; Logic Family / Base Number:74HC597; Shift Register Function:Parallel to Serial, Serial to Serial; No. of Elements:1 Element; No. of Bits Per Element:8bit; Logic Case Style:SOIC; No. of Pins:16Pins; Supply Voltage Min:2V; Supply Voltage Max:6V; IC Output Type:Standard; Logic IC Family:74HC; Logic IC Base Number:74597; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Frequency:35MHz; Input Current Max:1µA; Logic Function Number:74597; Logic IC Base Number:74597; Logic IC Function:8-Bit Shift Register with Input Storage; Logic Type:Shift Register; No. of Elements:1Elements; Operating Temperature Range:-55°C to +125°C; Supply Voltage Range:2V to 6V; Termination Type:Surface Mount Device

Direction Type	Uni-Directional
Logic Family	HC
Logical Function	Shift Register
Mounting	Surface Mount
Number of Elements	1
Number of Bits	8
Number of Count Input Enables	0
Number of Inputs	9
Number of Outputs	1
Number of Selection Inputs per Element	0
Operating Supply Voltage (Max)	6(V)
Operating Supply Voltage (Min)	2(V)
Operating Supply Voltage (Typ)	2.5/3.3/5(V)
Operating Temp Range	-55C to 125C
Operating Temperature Classification	Military
Output Type	Standard
Package Type	SOIC
Packaging	Tape and Reel
Parallel Enable Input	YES
Pin Count	16
Propagation Delay Time	360(ns)
Quiescent Current (Max)	0.008(mA)
Rad Hardened	No
Technology	CMOS
Terminal Count Output	NO
Triggering Type	POSITIVE-EDGE
Type	Not Required
