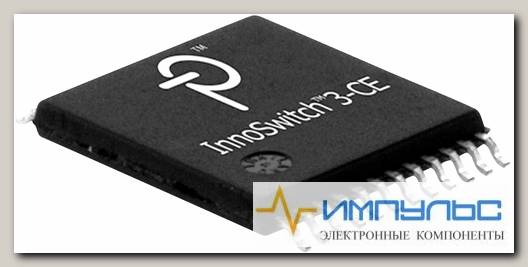

INN3162C-H101-TL, Обратноходовой AC/DC преобразователь, InnoSwitch3-CE, 85-265В AC, 10Вт, InSOP-24D-17 /Код si-196231

Полупроводники - Микросхемы\Микросхемы Управления Питанием\AC - DC ПреобразователиInnoSwitch™3-CE family of ICs dramatically simplifies the design and manufacture of flyback power converters, particularly those requiring high efficiency and/or compact size. This family incorporates primary and secondary controllers and safety-rated feedback into a single IC. InnoSwitch3-CE family devices incorporate multiple protection features including line over and undervoltage protection, output overvoltage and overcurrent limiting and overtemperature shutdown. Incorporates a multi-mode quasi-resonant (QR) / CCM flyback controller, 650V switch, secondary-side sensing and synchronous rectification driver. Devices are available that support common combinations of latching and auto-restart behaviours required by applications such as high efficiency flyback designs up to 65W, high current charger and adaptors for mobile devices, consumer electronics set-top boxes, networking, gaming, LED) and industrial systems. Devices are available with and without cable-drop compensation. • 10W (adapter), 12W (open frame) at 230VAC and 10W (adapter), 10W (open frame) at 85-265V O/P power• 0mV CDC, 63% AR threshold, hysteretic OTP response, fixed CC output profile, 120% VOUT OVP• EcoSmart™ energy efficient, highly Integrated and compact footprint• Advanced protection / safety features, up to 94% efficiency across full load range• Exceptional CV/CC accuracy, integrated FluxLink™, HIPOT-isolated, feedback link• Open SR FET-gate detection, fast input line UV/OV protection• UL1577 and TUV (EN60950 and EN62368) safety approved• Reinforced isolation, isolation voltage >4000VAC, 100% production HIPOT testing• Variable output voltage, constant current profiles, multiple output UV fault thresholds• Less than 30mW no-load including line sense, low heat dissipation

Класс Мощности	10Вт
Количество Выводов	17вывод(-ов)
Линейка Продукции	InnoSwitch3-CE Series
Максимальная Рабочая Температура	105 C
Максимальное Входное Напряжение AC	265В
Минимальная Рабочая Температура	-40 C
Минимальное Входное Напряжение AC	85В
Стиль Корпуса Преобразователя AC / DC	InSOP-24D
Топология (Общая Схема Соединений)	Обратноходовой
Уровень Чувствительности к Влажности (MSL)	MSL 3-168 часов
Controller Type	Flyback Controller
Current Conversion Type	DC-DC
Maximum Input Voltage	265 V
Maximum Operating Temperature	+150 °C
Maximum Output Voltage	27 V
Maximum Switching Frequency	90 kHz
Minimum Input Voltage	85 V
Minimum Operating Temperature	-40 °C
Minimum Output Voltage	-0.3 V
Mounting Type	Surface Mount
Number of Outputs	1
Package Type	InSOP-24D
Pin Count	16
Вес, г	0.7
