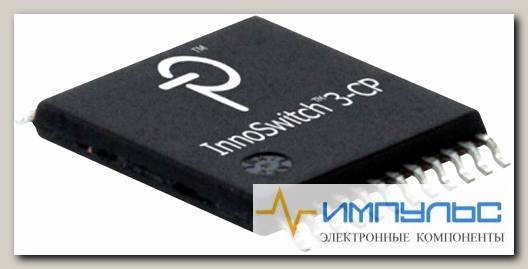

INN3276C-H204-TL, Обратноходовой AC/DC преобразователь, InnoSwitch3-CP, 85-265В AC, 36Вт, InSOP-24D-17 /Код si-198122

Полупроводники - Микросхемы\Микросхемы Управления Питанием\AC - DC ПреобразователиInnoSwitch™3-CP family of ICs dramatically simplifies the design and manufacture of flyback power converters, particularly those requiring high efficiency and/or compact size. This family incorporates primary and secondary controllers and safety-rated feedback into a single IC. InnoSwitch3-CP family devices incorporate multiple protection features including line over and undervoltage protection, output overvoltage and overcurrent limiting and overtemperature shutdown. Incorporates quasi-resonant (QR) / CCM flyback controller, high-voltage switch, secondary-side sensing and synchronous rectification driver. Constant power profile minimizes charging time with continuous adjustment of output current and voltage. Devices are available that support common combinations of latching and auto-restart behaviours required by applications such as high efficiency flyback designs up to 100W and USB PD / QC / proprietary protocol chargers. • 35W (adapter), 40W (open frame) at 230VAC and 27W (adapter), 36W (open frame) at 85-265V O/P power• 300mV CDC, 3.45V AR threshold, hysteretic OTP response, CP-9V output profile• EcoSmart™ energy efficient, highly Integrated and compact footprint• Advanced protection / safety features, up to 94% efficiency across full load range• Accurate CV/CC/CP, integrated FluxLink™, HIPOT-isolated, feedback link• Open SR FET-gate detection, fast input line UV/OV protection• UL1577 and TUV (EN60950 and EN62368) safety approved• Reinforced isolation, isolation voltage >4000VAC, 100% production HIPOT testing• Variable output voltage, constant current profiles, multiple output UV fault thresholds• Less than 30mW no-load including line sense, low heat dissipation

Класс Мощности	27Вт
Количество Выводов	24вывод(-ов)
Линейка Продукции	InnoSwitch3-CP Series
Максимальная Рабочая Температура	150 C
Максимальное Входное Напряжение AC	265В
Минимальная Рабочая Температура	-40 C
Минимальное Входное Напряжение AC	85В
Стиль Корпуса Преобразователя AC / DC	InSOP-24D
Топология (Общая Схема Соединений)	Обратноходовой
Уровень Чувствительности к Влажности (MSL)	MSL 3-168 часов
Brand:	Power Integrations
Factory Pack Quantity: Factory Pack Quantity:	2000
Input / Supply Voltage - Max:	265 VAC
Input / Supply Voltage - Min:	85 VAC
Isolation:	Isolated
Manufacturer:	Power Integrations
Maximum Operating Temperature:	+105 C
Minimum Operating Temperature:	-40 C
Moisture Sensitive:	Yes
Mounting Style:	SMD/SMT
Number of Outputs:	1 Output
Operating Supply Current:	1.02 mA
Output Current:	2.32 A
Output Power:	27 W, 40 W
Output Voltage:	27 V
Package/Case:	InSOP-24D
Packaging:	Reel, Cut Tape, MouseReel
Product Category:	AC/DC Converters
Product Type:	AC/DC Converters
Product:	AC/DC Converters
Series:	InnoSwitch3-CP
Subcategory:	PMIC-Power Management ICs
Switching Frequency:	132 kHz
Topology:	Flyback
Tradename:	InnoSwitch
Type:	Off Line Converter
Вес, г	0.7
