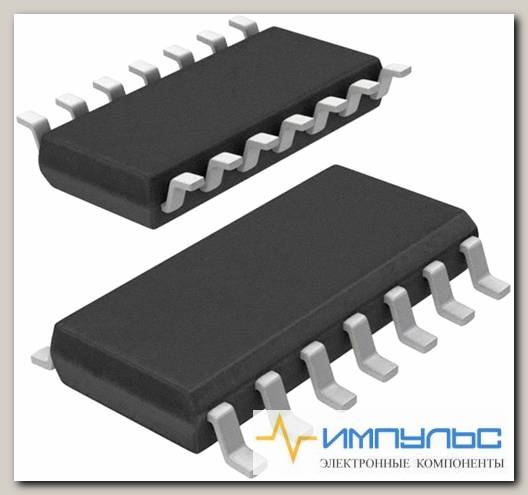

LM2901DT, Маломощный квадрантный компаратор напряжения [SO-14] /Код si-366638

The LM2901DT is a low-power quad precision Voltage Comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. This comparator also has unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage. • Input common-mode voltage range includes ground• 250mV Low output saturation voltage• Differential input voltage range equal to the power supply voltage• TTL, DTL, ECL, MOS, CMOS compatible outputs

Тип	Общего Назначения
Число элементов	4
Тип выхода	CMOS, MOS, Open-Collector, TTL
Ток потребления, мА	2
Напряжение питания: одиночное (В+), двойное (В±)	+2…30, ±1…15
Время задержки распространения, нс	300
Рабочая температура,°C	0…+70
Корпус	soic-14
Корпус	soic14
Вес, г	0.25
