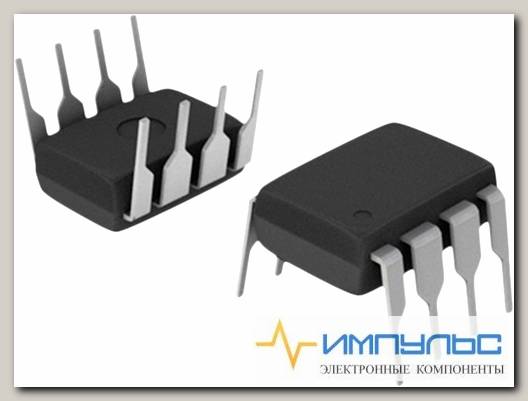

LM2903NG /Код si-376806

Артикул: si-376806

Информация

LM2903 - Comparator, 2 Func, 15000uV Offset-Max, 1500ns Response Time, PDIP8

Lead Finish	Matte Tin
Manufacturer Type	Differential Comparator
Maximum Dual Supply Voltage	±18 V
Maximum Input Bias Current	0.25 5V uA
Maximum Input Offset Voltage	7 5V mV
Maximum Operating Supply Voltage	±18I36 V
Maximum Power Dissipation	1040 mW
Maximum Single Supply Voltage	36 V
Maximum Supply Current	1 5V mA
Minimum Dual Supply Voltage	±1 V
Minimum Single Supply Voltage	2 V
Mounting	Through Hole
Number of Channels per Chip	2
Operating Temperature	-40 to 105 C
Output Type	Open Collector
Power Supply Type	SingleIDual
Rail to Rail	No
Strobe Capability	No
Typical Dual Supply Voltage	±3I±5I±9I±12I±15 V
Typical Response Time	1.5 us
Typical Single Supply Voltage	3I5I9I12I15I18I24I28 V
Typical Voltage Gain	106.02 dB
Typical Voltage Gain Range	90 to 110 dB
CMRR, PSRR (Typ)	-
Current - Input Bias (Max)	0.25uA 5V
Current - Output (Typ)	16mA 5V
Current - Quiescent (Max)	2.5mA
Family	Linear-Comparators
Hysteresis	-
Manufacturer	Fairchild Semiconductor
Mounting Type	Through Hole
Number of Elements	2
Package / Case	8-DIP(0.300, 7.62mm)
Packaging	Tube
Part Status	Active
Propagation Delay (Max)	-
Series	-
Standard Package	50
Supplier Device Package	8-DIP
Type	Differential
Voltage - Input Offset (Max)	7mV 5V
Voltage - Supply, Single/Dual (±)	2 V ~ 36 V, ±1 V ~ 18 V
Вес, г	1
