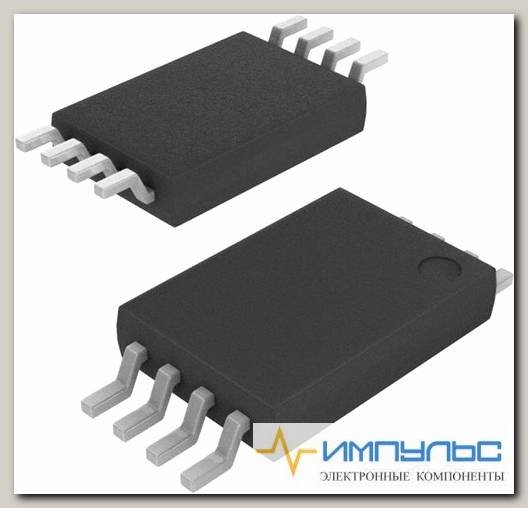

LM2903PT /Код si-372280

COMPARATOR DUAL IND SPEC, SMD, 2903; Comparator Type:Low Power; No. of Comparators:2 Comparators; Response Time:1.3µs; Supply Voltage Range:± 1V to ± 18V; Comparator Case Style:TSSOP; No. of Pins:8Pins; IC Output Type:CMOS, DTL, ECL, MOS, TTL; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Amplifier Case Style:TSSOP; Base Number:2903; Comparator Features:Dual Low Power; IC Generic Number:2903; Logic Function Number:2903; No. of Comparators:2; No.Comparators:2; Operating Temperature Range:-40°C to +85°C; Output Compatibility:CMOS, DTL, ECL, MOS, TTL; Supply Current:1mA; Supply Voltage Max:36V; Supply Voltage Min:2V; Termination Type:Surface Mount Device

Brand	STMicroelectronics
Factory Pack Quantity	4000
GBP - Gain Bandwidth Product	-
Height	1.2 mm
Ib - Input Bias Current	25 nA
Ios - Input Offset Current	5 nA
Length	4.5 mm
Manufacturer	STMicroelectronics
Maximum Operating Temperature	+125 C
Minimum Dual Supply Voltage	1 V
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Channels	2 Channel
Operating Supply Current	1 mA
Operating Supply Voltage	36 V
Output Current per Channel	4 mA
Output Type	Open Collector
Package / Case	TSSOP-8
Packaging	Tube
Pd - Power Dissipation	625 mW
Product	Analog Comparators
Product Category	Analog Comparators
Reference Voltage	No
Response Time	1.3 us
RoHS	Details
Series	LM2903
Shutdown	No Shutdown
Supply Voltage - Max	36 V
Supply Voltage - Min	18 V
Vcm - Common Mode Voltage	Negative Rail to Positive Rail-1.5 V
Vos - Input Offset Voltage	7 mV
Width	3.1 mm
Вес, г	0.08
