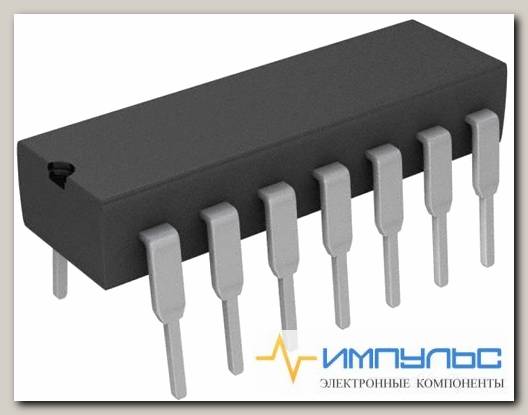

LM339AN /Код si-374419

IC, COMPARATOR, QUAD, DIFFERENTIAL; Comparator Type:Low Power; No. of Comparators:4 Comparators; Response Time:1.3µs; Supply Voltage Range:2V to 36V, ± 1V to ± 18V; Comparator Case Style:DIP; No. of Pins:14Pins; IC Output Type:Open Drain; Operating Temperature Min:0°C; Operating Temperature Max:70°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Amplifier Case Style:DIP; Base Number:339; Comparator Features:Quad High Performance; Device Marking:LM339AN; IC Temperature Range:Commercial; Logic Function Number:339; No. of Comparators:4; No.Comparators:4; Operating Temperature Range:0°C to +70°C; Output Compatibility:CMOS, DTL, ECL, MOS, TTL; Output Offset Voltage Max:3mV; Supply Current:1mA; Supply Voltage Max:36V; Supply Voltage Min:2V

Brand	Texas Instruments
Comparator Type	Differential
Dual Supply Voltage	+/-3 V, +/-5 V, +/-9 V, +/-12 V
Factory Pack Quantity	25
GBP - Gain Bandwidth Product	-
Height	4.57 mm
Ib - Input Bias Current	50 nA
Ios - Input Offset Current	50 nA
Length	19.3 mm
Manufacturer	Texas Instruments
Maximum Dual Supply Voltage	+/-15 V
Maximum Operating Temperature	+70 C
Minimum Dual Supply Voltage	1 V
Minimum Operating Temperature	0 C
Mounting Style	Through Hole
Number of Channels	4 Channel
Operating Supply Current	500 uA
Operating Supply Voltage	2 V to 30 V
Output Current per Channel	6 mA
Output Type	Rail-to-Rail
Package / Case	PDIP-14
Packaging	Tube
Pd - Power Dissipation	1050 mW
Product	Analog Comparators
Product Category	Analog Comparators
Reference Voltage	Yes
Response Time	300 ns
RoHS	Details
Series	LM339A
Shutdown	No Shutdown
Supply Type	Single, Dual
Supply Voltage - Max	30 V
Supply Voltage - Min	2 V
Technology	Bipolar
Type	Differential Comparator
Unit Weight	0.032734 oz
Voltage Gain dB	106.02 dB
Vos - Input Offset Voltage	3 mV
Width	6.35 mm
Features	Standard comparator
Product Type	Analog Comparators
Subcategory	Amplifier ICs
Вес, г	1.9
