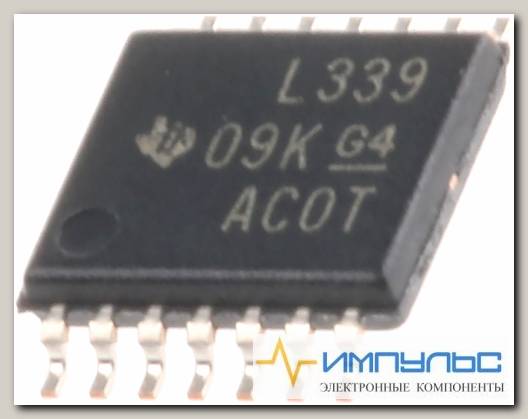

LM339PW, Comparator Quad R-R O/P ±15V/30V 14-Pin TSSOP Tube /Код si-375535
- Артикул: si-375535
The Texas Instruments LM139, LM239, LM339 and LM2901 are quad differential input voltage comparators designed to operate from a single power supply over a wide range of voltages.
| Brand | Texas Instruments |
| Comparator Type | Differential |
| Dual Supply Voltage | +/-3 V, +/-5 V, +/-9 V, +/-12 V |
| Factory Pack Quantity | 2000 |
| GBP - Gain Bandwidth Product | - |
| Height | 1 mm |
| Ib - Input Bias Current | 50 nA |
| Ios - Input Offset Current | 50 nA |
| Length | 5 mm |
| Manufacturer | Texas Instruments |
| Maximum Dual Supply Voltage | +/-15 V |
| Maximum Operating Temperature | +70 C |
| Minimum Dual Supply Voltage | 1 V |
| Minimum Operating Temperature | 0 C |
| Mounting Style | SMD/SMT |
| Number of Channels | 4 Channel |
| Operating Supply Current | 500 uA |
| Operating Supply Voltage | 2 V to 30 V |
| Output Current per Channel | 6 mA |
| Output Type | Rail-to-Rail |
| Package / Case | TSSOP-14 |
| Packaging | Reel |
| Product | Analog Comparators |
| Product Category | Analog Comparators |
| Reference Voltage | Yes |
| Response Time | 300 ns |
| RoHS | Details |
| Series | LM339 |
| Shutdown | No Shutdown |
| Supply Type | Single, Dual |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 2 V |
| Technology | Bipolar |
| Type | Differential Comparator |
| Unit Weight | 0.002018 oz |
| Voltage Gain dB | 106.02 dB |
| Vos - Input Offset Voltage | 5 mV |
| Width | 4.4 mm |
| Mounting Type | Surface Mount |
| Number of Channels per Chip | 4 |
| Package Type | TSSOP |
| Pin Count | 14 |
| Power Supply Type | Dual, Single |
| Typical Dual Supply Voltage | ±12 V, ±3 V, ±5 V, ±9 V |
| Typical Response Time | 1.3µ,s |
| Typical Single Supply Voltage | 3 > 28 V |
| Typical Voltage Gain | 106.02 dB |
