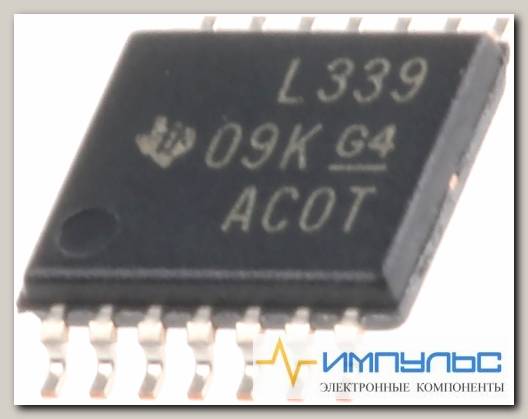

LM339PW /Код si-374171

DIFFERENTIAL COMPARATOR, 300NS, TSSOP-14; Comparator Type:Differential; No. of Comparators:4 Comparators; Response Time:300ns; Supply Voltage Range:2V to 36V; Comparator Case Style:TSSOP; No. of Pins:14Pins; IC Output Type:CMOS, MOS, Open Collector / Drain, TTL; Operating Temperature Min:0°C; Operating Temperature Max:70°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); No. of Comparators:4

Brand	Texas Instruments
Comparator Type	Differential
Dual Supply Voltage	+/-3 V, +/-5 V, +/-9 V, +/-12 V
Factory Pack Quantity	2000
GBP - Gain Bandwidth Product	-
Height	1 mm
Ib - Input Bias Current	50 nA
Ios - Input Offset Current	50 nA
Length	5 mm
Manufacturer	Texas Instruments
Maximum Dual Supply Voltage	+/-15 V
Maximum Operating Temperature	+70 C
Minimum Dual Supply Voltage	1 V
Minimum Operating Temperature	0 C
Mounting Style	SMD/SMT
Number of Channels	4 Channel
Operating Supply Current	500 uA
Operating Supply Voltage	2 V to 30 V
Output Current per Channel	6 mA
Output Type	Rail-to-Rail
Package / Case	TSSOP-14
Packaging	Reel
Product	Analog Comparators
Product Category	Analog Comparators
Reference Voltage	Yes
Response Time	300 ns
RoHS	Details
Series	LM339
Shutdown	No Shutdown
Supply Type	Single, Dual
Supply Voltage - Max	30 V
Supply Voltage - Min	2 V
Technology	Bipolar
Type	Differential Comparator
Unit Weight	0.002018 oz
Voltage Gain dB	106.02 dB
Vos - Input Offset Voltage	5 mV
Width	4.4 mm
Mounting Type	Surface Mount
Number of Channels per Chip	4
Package Type	TSSOP
Pin Count	14
Power Supply Type	Dual, Single
Typical Dual Supply Voltage	±12 V, ±3 V, ±5 V, ±9 V
Typical Response Time	1.3µ,s
Typical Single Supply Voltage	3 > 28 V
Typical Voltage Gain	106.02 dB
Вес, г	0.06
