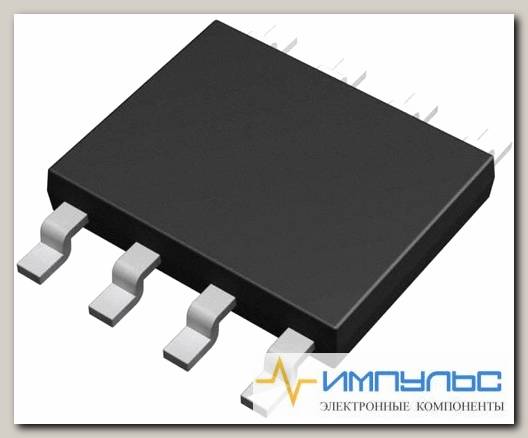

LM393DGKR, Компаратор, дифференциальный, SMT, VSSOP8, Компараторы 2, 2500шт. /Код si-370048

The LM393DGKR is a Dual Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 to 36V and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM393 device is characterized for operation from 0 to 70°C. • Low supply-current drain independent of supply voltage - 0.4mA per comparator• Common-mode input voltage range includes ground• ±36V Differential input voltage range equal to maximum-rated supply voltage• Low output saturation voltage• Output compatible with TTL, MOS and CMOS• Green product and no Sb/Br

Iq Per Channel (Typ)	1mA
Maximum Operating Temperature	70В°C
Minimum Operating Temperature	0В°C
Number Of Elements	2
Output Type	Open-Collector
Supply Voltage - Max	36V, В±1V
Supply Voltage - Min	2V
Время Реакции	300нс
Диапазон Напряжения Питания	2В до 36В
Количество Выводов	8вывод(-ов)
Количество Компараторов	2 Компаратора
Максимальная Рабочая Температура	70 C
Минимальная Рабочая Температура	0 C
Стиль Корпуса Компаратора	MSOP
Тип Выхода Микросхемы	Открытый Коллектор
Тип Компаратора	Дифференциальный
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
Вес, г	0.25
