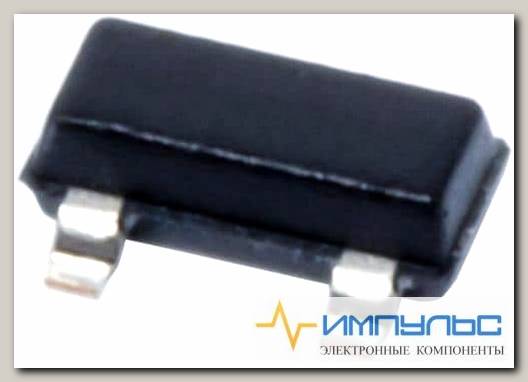

LM4040BIM3-4.1 /Код si-329810

VOLTAGE REF, SHUNT, 4.096V, SOT-23-3; Voltage Reference Type:Shunt - Fixed; Product Range:LM4040 Series; Reference Voltage:4.096V; Initial Accuracy:0.2%; Temperature Coefficient:± 30ppm/°C; Voltage Reference Case Style:SOT-23; No. of Pins:3Pins; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Automotive Qualification Standard:AEC-Q100; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:4040; Operating Temperature Range:-40°C to +85°C; Power Dissipation Max:306mW; Reference Volt Tolerance ±%:0.2%; Reference Voltage Tolerance:8.2mV; Reference Volts:4.096V; Temperature Coeff. +:150ppm/°C; Termination Type:Surface Mount Device; Topology:Shunt

Base Part Number	LM4040
Current - Cathode	73ВuA
Current - Output	15mA
Current - Supply	-
Manufacturer	Texas Instruments
Mounting Type	Surface Mount
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10kHz	80ВuVrms
Operating Temperature	-40В C ~ 85В C(TA)
Output Type	Fixed
Package / Case	TO-236-3, SC-59, SOT-23-3
Packaging	Cut Tape(CT)
Part Status	Discontinued at Digi-Key
Reference Type	Shunt
Series	-
Supplier Device Package	SOT-23-3
Temperature Coefficient	100ppm/В C
Tolerance	В±0.2%
Voltage - Input	-
Voltage - Output (Min/Fixed)	4.096V
Вид монтажа	SMD/SMT
Высота	0.93 mm
Выходное напряжение	4.096 V
Диапазон рабочих температур	40 C to + 85 C
Длина	2.92 mm
Исходная точность	0.2 %
Категория продукта	Источники опорного напряжения
Максимальная рабочая температура	+ 85 C
Минимальная рабочая температура	40 C
Описание/функция	PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Подкатегория	PMIC - Power Management ICs
Продукт	Voltage References
Размер фабричной упаковки	1000
Серия	LM4040-N
Серия VREF - входное напряжение - макс.	4.1 V
Температурный коэффициент	150 PPM/C
Тип продукта	Voltage References
Тип ссылки	Shunt Precision References
Ток через шунт - макс.	15 mA
Топология	Shunt References
Торговая марка	Texas Instruments
Точность	7 mV
Упаковка / блок	SOT-23-3
Ширина	1.3 mm
RoHS	N
Нестабильность выходной нагрузки	7 mV
Maximum Operating Temperature	85В°C(TA)
Minimum Operating Temperature	-40В°C
Output Current	15mA
Output Voltage	4.096V
Shunt Current - Min	73uA
Automotive	No
ECCN (US)	EAR99
EU RoHS	Compliant
Initial Accuracy	0.2%
Lead Shape	Gull-wing
Load Regulation	3mV(Typ)
Maximum Operating Temperature (°C)	85
Maximum Output Current (mA)	15
Maximum Temperature Coefficient	30ppm/C(Typ)
Minimum Operating Temperature (°C)	-40
Mounting	Surface Mount
Output Voltage (V)	4.096
PCB changed	3
Pin Count	3
PPAP	No
Standard Package Name	SOT
Supplier Package	SOT-23
Supplier Temperature Grade	Industrial
Topology	Shunt
