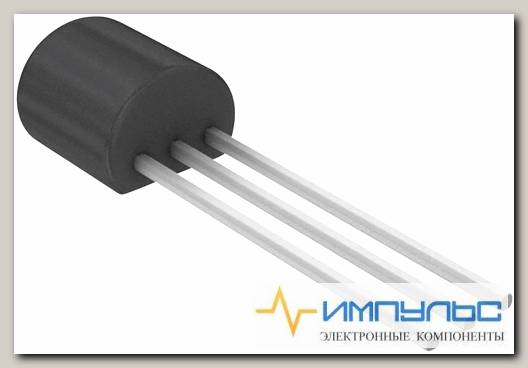

LM4040DIZ-4.1 /Код si-329345

VOLTAGE REF, SHUNT, 4.096V, TO-226AA-3; Voltage Reference Type:Shunt - Fixed; Product Range:LM4040 Series; Reference Voltage:4.096V; Initial Accuracy:1%; Temperature Coefficient:± 30ppm/°C; Voltage Reference Case Style:TO-226AA; No. of Pins:3Pins; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:4040; Junction Temperature Tj Max:85°C; Junction Temperature Tj Min:-40°C; Logic Function Number:4040; Reference Volt Tolerance ±%:1%; Reference Volts:4.1V; Temperature Coeff. +:150ppm/°C; Tolerance:0.1%

Brand	Texas Instruments
Description/Function	PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Factory Pack Quantity	1800
Height	5.2 mm(Max)
Initial Accuracy	1%
Length	5.2 mm(Max)
Manufacturer	Texas Instruments
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	Through Hole
Operating Temperature Range	-40 C to+85 C
Output Voltage	4.096 V
Package / Case	TO-92
Packaging	Bulk
Product	Voltage References
Product Category	Voltage References
Reference Type	Shunt Precision References
RoHS	Details
Series	LM4040-N
Shunt Current - Max	15 mA
Shunt Current - Min	68 uA
Temperature Coefficient	150 PPM/C
Topology	Shunt References
Unit Weight	0.016 oz
Width	4.19 mm(Max)
Вид монтажа	Through Hole
Высота	5.2 mm (Max)
Выходное напряжение	4.096 V
Диапазон рабочих температур	40 C to + 85 C
Длина	5.2 mm (Max)
Исходная точность	1 %
Категория продукта	Источники опорного напряжения
Максимальная рабочая температура	+ 85 C
Минимальная рабочая температура	40 C
Описание/функция	PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Подкатегория	PMIC - Power Management ICs
Продукт	Voltage References
Размер фабричной упаковки	1800
Серия	LM4040-N
Температурный коэффициент	150 PPM / C
Тип продукта	Voltage References
Тип ссылки	Shunt Precision References
Ток через шунт - макс.	15 mA
Ток через шунт - мин.	68 uA
Топология	Shunt References
Торговая марка	Texas Instruments
Упаковка	Bulk
Упаковка / блок	TO-92-3
Ширина	4.19 mm (Max)
Base Product Number	LM4040 ->,
Current - Cathode	78Вµ,A
Current - Output	15mA
ECCN	EAR99
HTSUS	8542.39.0001
Manufacturer Product Page	http://www.ti.com/general/docs/suppproductinfo.tsp
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Through Hole
Noise - 10Hz to 10kHz	80Вµ,Vrms
Operating Temperature	-40В°C ~ 85В°C (TA)
Output Type	Fixed
Package	Bulk
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Supplier Device Package	TO-92-3
Tolerance	В±1%
Voltage - Output (Min/Fixed)	4.096V
Вес, г	0.26
