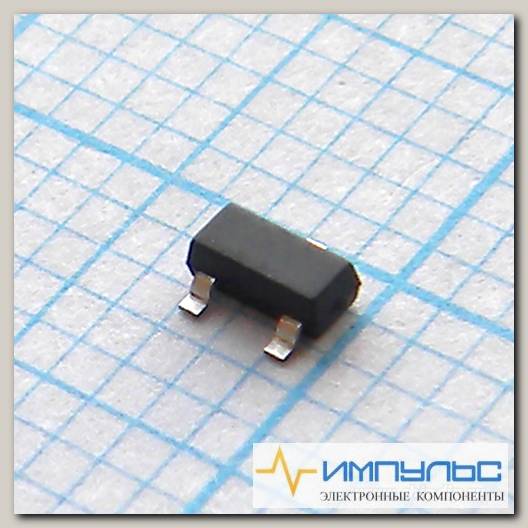

LM4050AIM3-2.5 /Код si-333468

VOLTAGE REF, SHUNT, 2.5V, SOT-23-3; Voltage Reference Type:Shunt - Fixed; Product Range:LM4050 Series; Reference Voltage:2.5V; Initial Accuracy:0.1%; Temperature Coefficient:± 20ppm/°C; Voltage Reference Case Style:SOT-23; No. of Pins:3Pins; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:4050; Operating Temperature Range:-40°C to +85°C; Power Dissipation Max:280mW; Reference Volt Tolerance ±%:0.1%; Reference Voltage Tolerance:2.5mV; Reference Volts:2.5V; Temperature Coeff. +:150ppm/°C; Termination Type:Surface Mount Device; Topology:Shunt

Accuracy	6 mV
Brand	Texas Instruments
Description/Function	PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Factory Pack Quantity	1000
Height	0.93 mm
Initial Accuracy	0.1%
Length	2.92 mm
Manufacturer	Texas Instruments
Maximum Operating Temperature	+125 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Operating Temperature Range	-40 C to+125 C
Output Voltage	2.5 V
Package / Case	SOT-23
Packaging	Reel
Product	Voltage References
Product Category	Voltage References
Reference Type	Shunt Precision References
RoHS	Details
Series	LM4050-N
Series VREF - Input Voltage - Max	2.5 V
Shunt Current - Max	15 mA
Temperature Coefficient	20 PPM/C(Typ)
Topology	Shunt References
Unit Weight	0.00709 oz
Width	1.3 mm
Output Current	15mA
Output Type	Fixed
Shunt Current - Min	65uA
Tolerance	В±0.1%
