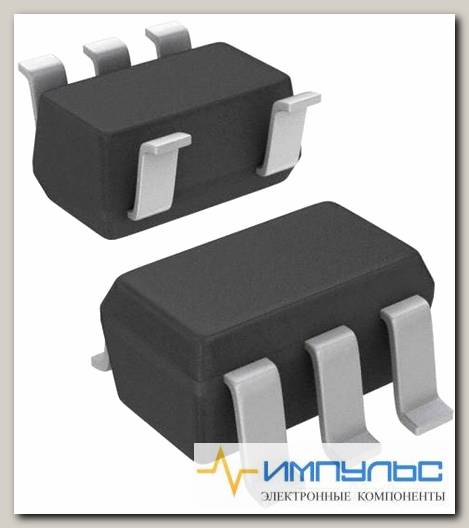

LM4120IM5-4.1 /Код si-333003

VOLTAGE REF, SERIES, 4.096V, SOT-23-5; Voltage Reference Type:Series - Fixed; Product Range:LM4120 Series; Reference Voltage:4.096V; Initial Accuracy:0.5%; Temperature Coefficient:± 14ppm/°C; Voltage Reference Case Style:SOT-23; No. of Pins:5Pins; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019)

Base Part Number	LM4120
Current - Output	5mA
Current - Supply	275ВuA
Manufacturer	Texas Instruments
Mounting Type	Surface Mount
Noise - 0.1Hz to 10Hz	20ВuVp-p
Noise - 10Hz to 10kHz	36ВuVp-p
Operating Temperature	-40В C ~ 85В C(TA)
Output Type	Fixed
Package / Case	SC-74A, SOT-753
Packaging	Digi-ReelВ(r)
Part Status	Active
Reference Type	Series
Series	-
Supplier Device Package	SOT-23-5
Temperature Coefficient	50ppm/В C
Tolerance	В±0.5%
Voltage - Input	2V ~ 12V
Voltage - Output (Min/Fixed)	4.096V
Input Voltage	2 V ~ 12 V
Maximum Operating Temperature	85В°C(TA)
Minimum Operating Temperature	-40В°C
Output Current	5mA
Output Voltage	4.096V
Supply Current	275uA
