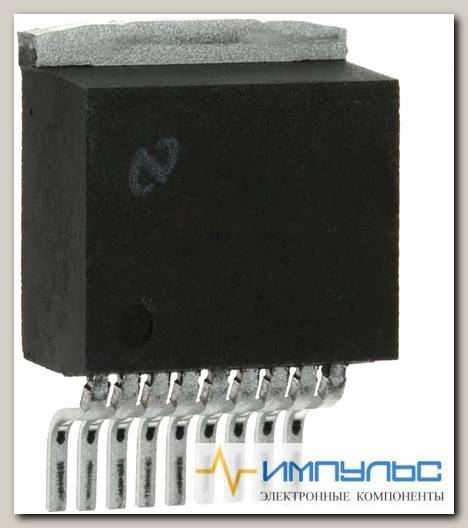

LM4950TS /Код si-841372

AMP, 3W STEREO/6W MONO, SMD, 4950; Output Power:7.5W; Amplifier Class:AB; No. of Channels:2 Channel; Supply Voltage Range:9.6V to 16V; Amplifier Case Style:TO-263; No. of Pins:9Pins; Load Impedance:4ohm; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 3 - 168 hours; SVHC:No SVHC (15-Jan-2019); Amplifer Supply Voltage:9.6V to 16V; Amplifier Type:Power; Bandwidth:20kHz; Base Number:4950; No. of Channels:2Channels; Operating Temperature Range:-40°C to +85°C; Output Power (Pout):3.1W @ 4ohm; Supply Voltage + Nom:16V; Supply Voltage Max:16V; Supply Voltage Min:9.6V; THD + N:0.05% @ 2.5W, 4ohm, VDD=12V; Termination Type:Surface Mount Device

Audio Amplifier Function	Speaker
Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Input Offset Voltage	30(mV)
Input Signal Type	SINGLE
Maximum Load Resistance	8
Mounting	Surface Mount
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Operational Class	Class-AB
Output Power (Typ)	7.5x1(W)
Output Signal Type	DIFFERENTIAL/SINGLE
Package Type	TO-263
Packaging	Tape and Reel
Pin Count	9+Tab
Power Supply Rejection Ratio	70(dB)
Power Supply Requirement	Single
Rad Hardened	No
Rail/Rail I/O Type	No
Single Supply Voltage (Max)	16(V)
Single Supply Voltage (Min)	9.6(V)
Single Supply Voltage (Typ)	12/15(V)
Total Harmonic Distortion	0.05%4OHM 2.5W
Base Product Number	LM4950 ->,
ECCN	EAR99
Features	Depop, Short-Circuit and Thermal Protection, Shutd
HTSUS	8542.33.0001
Max Output Power x Channels @ Load	7.5W x 1 @ 8Ohm, 3.1W x 2 @ 4Ohm
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Mounting Type	Surface Mount
Operating Temperature	-40В°C ~ 85В°C (TA)
Output Type	1-Channel (Mono) or 2-Channel (Stereo)
Package	Tube
Package / Case	TO-263-10 (9 Leads + Tab)
REACH Status	REACH Affected
RoHS Status	RoHS non-compliant
Series	BoomerВ®, ->,
Supplier Device Package	DDPAK/TO-263-9
Type	Class AB
Voltage - Supply	9.6V ~ 16V
корпус	TO263-9
Вес, г	2.41
