LMV7239M7 /Код si-380712

IC, COMPARATOR, R-R I/O, POWERWISE; Comparator Type:Low Power; No. of Comparators:1 Comparator; Response Time:45ns; Supply Voltage Range:2.7V to 5.5V; Comparator Case Style:SC-70; No. of Pins:5Pins; IC Output Type:Push Pull; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Amplifier Case Style:SC-70; No. of Comparators:1; No.Comparators:1; Operating Temperature Range:-40°C to +85°C; Supply Current:65µA; Supply Voltage Max:5.5V; Supply Voltage Min:2.7V; Termination Type:Surface Mount Device

Brand	Texas Instruments
CMRR - Common Mode Rejection Ratio	67 dB
Comparator Type	General Purpose
Factory Pack Quantity	3000
GBP - Gain Bandwidth Product	-
Height	0.9 mm
Ib - Input Bias Current	400 nA
Length	2 mm
Manufacturer	Texas Instruments
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Channels	1 Channel
Operating Supply Current	95 uA
Operating Supply Voltage	3 V, 5 V
Output Type	Push-Pull

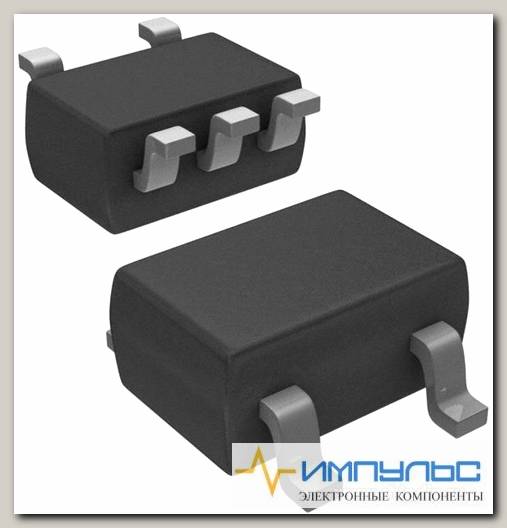

Package / Case	SC-70
Packaging	Reel
Product	Analog Comparators
Product Category	Analog Comparators
PSRR - Power Supply Rejection Ratio	85 dB
Response Time	75 ns
RoHS	Details
Series	LMV7239
Shutdown	No Shutdown
Supply Type	Single
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Technology	BiCMOS
Type	Ultra Low Power Comparator
Unit Weight	0.000988 oz
Vos - Input Offset Voltage	6 mV
Width	1.25 mm
Iq Per Channel (Typ)	95uA
Number Of Elements	1
Propagation Delay - Max	62ns
