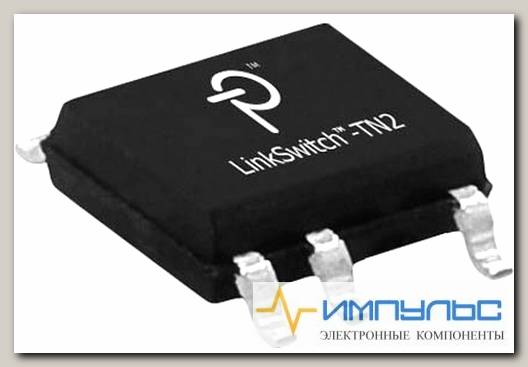

LNK3204G-TL /Код si-198773

AC/DC CONV, BUCK-BOOST/FLYBACK, SMD-8; Input Voltage AC Min:85V; Input Voltage AC Max:265V; AC / DC Converter Case Style:SMD; No. of Pins:8Pins; Power Rating:-; Topology:Buck, Buck-Boost, Flyback; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Product Range:-; RoHS Phthalates Compliant:Yes; MSL:MSL 4 - 72 hours; SVHC:No SVHC (15-Jan-2018)

Brand	Power Integrations
Duty Cycle - Max	73%
Factory Pack Quantity	1000
Input / Supply Voltage - Max	265 VAC
Input / Supply Voltage - Min	85 VAC
Isolation	Non-Isolated
Manufacturer	Power Integrations
Maximum Operating Temperature	+150 C
Mounting Style	SMD/SMT
Number of Outputs	1 Output
Operating Supply Current	113 uA
Operating Temperature Range	-40 C to+150 C
Output Current	120 mA, 170 mA
Output Voltage	50 V
Package / Case	SMD-8C-7
Packaging	Reel
Product	AC/DC Converters
Product Category	AC/DC Converters
RoHS	Details
Series	TN2
Switching Frequency	66 kHz
Topology	Buck, Buck-Boost, Flyback
Tradename	LinkSwitch
Type	Off Line Switcher
Current Limit	289(Reduced)mA, 356(Standard)mA
Input Voltage Range	85 > 265 V ac
Maximum Input Voltage	265 V ac
Maximum Output Current	120(MDCM)mA, 170(CCM)mA
Minimum Input Voltage	85 V ac
Minimum Operating Temperature	-40 °C
Minimum Output Voltage	50 V
Mounting Type	Surface Mount
Output Current Range	Maximum of 120(MDCM)mA, Maximum of 170(CCM)mA
Output Voltage Range	Minimum of 50 V
Package Type	SMD
Pin Count	7
Typical Operating Supply Voltage	230 V ac
Width	6.6mm
Вес, г	0.7
