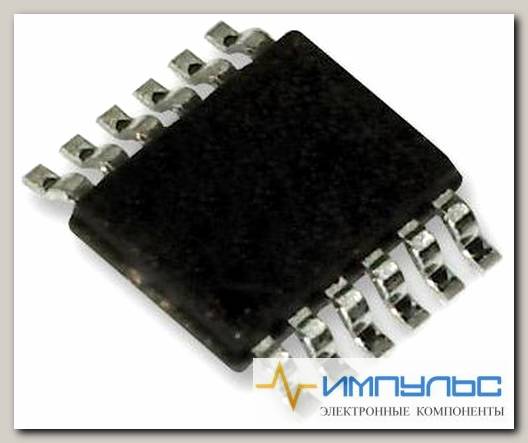

LTC4231IMS-1#PBF, Hot Swap Controller 1-CH 36V N-Channel Positive Low Voltage 12-Pin MSOP Tube /Код si-402257

LTC4231 is a micropower Hot Swap controller that allows safe circuit board insertion and removal from a live power supply. An internal high side switch driver controls the gate of an external N-channel MOSFET. Back-to-back MOSFETs can be used for reverse supply protection down to -40V. The LTC4231 provides a debounce delay and allows the GATE to be ramped up at an adjustable rate. After start-up, the LTC4231's quiescent current drops to 4µA during normal operation with output active. UVL, UVH, OV and GNDSW monitor overvoltage and under voltage periodically, keeping total quiescent current low. Pulling active low SHDN low shuts down the LTC4231 and quiescent current drops to 0.3µA. During an overcurrent fault, the LTC4231 actively limits current while running an adjustable timer. Typical applications include battery powered equipment, solar powered systems, portable instruments and energy harvesting. • Remains off after a current fault• Wide operating voltage range from 2.7V to 36V• Adjustable analogue current limit with circuit breaker• Automatic retry or latch off on current fault• Controls single or back-to-back N-channel MOSFETs• 12-lead plastic MSOP package• Temperature range from -40°C to 85°C

IC Case / Package	MSOP
Количество Выводов	12вывод(-ов)
Максимальная Рабочая Температура	85 C
Максимальное Напряжение Питания	36В
Минимальная Рабочая Температура	-40 C
Минимальное Напряжение Питания	2.7В
Стиль Корпуса ИС Контроллера	MSOP
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
Applications	General Purpose
Current - Output (Max)	-
Current - Supply	4ВuA
Feature Pins	GNDSW, OV, SENSE, /SHDN, STATUS, TIMER, UVL, UVH
Features	Latched Fault
Internal Switch(s)	No
Manufacturer	Linear Technology
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature	-40В C ~ 85В C
Package / Case	12-TSSOP(0.118, 3.00mm Width)
Packaging	Tube
Part Status	Active
Series	-
Standard Package	37
Supplier Device Package	12-MSOP
Type	Hot Swap Controller
Voltage - Supply	2.7 V ~ 36 V
