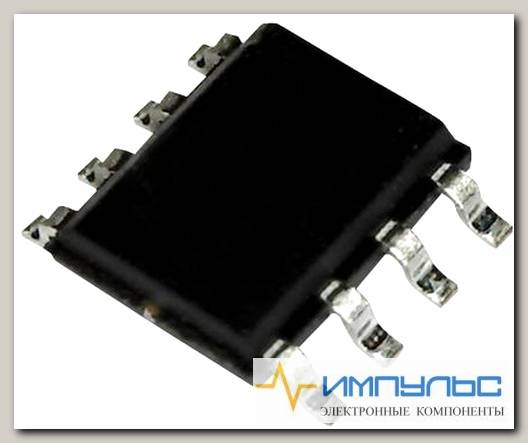

MAX5035BUSA+, Переключатель силовой нагрузки, высоковольтный, понижающий DC-DC преобразователь, 7.5В-76В, 1А/0.4Ом /Код si-401265

Полупроводники - Микросхемы\Микросхемы Управления Питанием\Коммутаторы ПитанияThe MAX5035BUSA+ is a MAXPower high-efficiency Step-down DC-DC Converter operates from an input voltage up to 76V and consumes only 270µA quiescent current at no load. This pulse-width modulated (PWM) converter operates at a fixed 125kHz switching frequency at heavy loads and automatically switches to pulse-skipping mode to provide low quiescent current and high efficiency at light loads. The MAX5035 includes internal frequency compensation simplifying circuit implementation. The device uses an internal low on-resistance, high-voltage, DMOS transistor to obtain high efficiency and reduce overall system cost. This device includes under-voltage lockout, cycle-by-cycle current limit, hiccup mode output short-circuit protection and thermal shutdown. The MAX5035 delivers up to 1A output current. • Efficiency up to 94%• Internal 0.4R high-side DMOS FET• 350µA quiescent current at no load and 10µA shutdown current• Internal frequency compensation• Thermal shutdown and short-circuit current limit

Количество Выводов	8вывод(-ов)
Количество Выходов	1выход(-ов)
Максимальная Рабочая Температура	85 C
Минимальная Рабочая Температура	0 C
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
Вес, г	4.23
