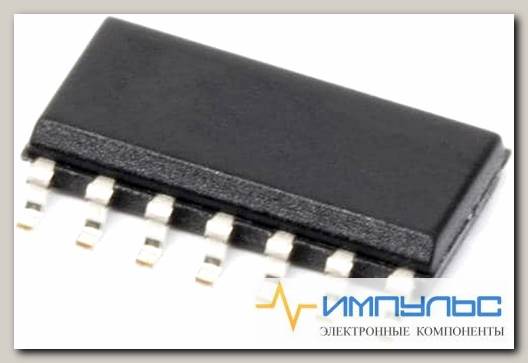

MC74HC393ADG /Код si-676018

COUNTER, BINARY RIPPLE, 4BIT, NSOIC-14; Logic Family / Base Number:74HC393; Counter Type:Binary Ripple; Clock Frequency:50MHz; Count Maximum:15; Logic Case Style:NSOIC; No. of Pins:14Pins; Supply Voltage Min:2V; Supply Voltage Max:6V; Logic IC Family:74HC; Logic IC Base Number:74393; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018)

Direction Type	Uni-Directional
Logic Family	HC
Logical Function	Counter/Divider
Mode Of Operation	UP COUNTER
Mounting	Surface Mount
Number of Elements	2
Number of Bits	4
Number of Count Input Enables	0
Number of Inputs	1
Number of Outputs	4
Number of Selection Inputs per Element	0
Operating Supply Voltage (Max)	6(V)
Operating Supply Voltage (Min)	2(V)
Operating Supply Voltage (Typ)	2.5/3.3/5(V)
Operating Temp Range	-55C to 125C
Operating Temperature Classification	Military
Output Type	Standard
Package Type	SOIC N
Packaging	Tape and Reel
Parallel Enable Input	NO
Pin Count	14
Propagation Delay Time	300(ns)
Quiescent Current (Max)	0.004(mA)
Rad Hardened	No
Reset Type	ASYNCHRONOUS
Technology	CMOS
Terminal Count Output	NO
Triggering Type	NEGATIVE-EDGE
Type	Binary
Вид монтажа	SMD/SMT
Категория продукта	ИС, счетчики
Подкатегория	Counter ICs
Последовательность счёта	Up
Рабочее напряжение питания	2 V to 6 V
Размер фабричной упаковки	55
Семейство логических элементов	74HC
Серия	MC74HC393A
Тип продукта	Counter ICs
Торговая марка	ON Semiconductor
Упаковка	Tube
Упаковка / блок	SOIC-14
Функция	Counter/Divider
Вес, г	0.38
