MC74HC595ADG /Код si-543307

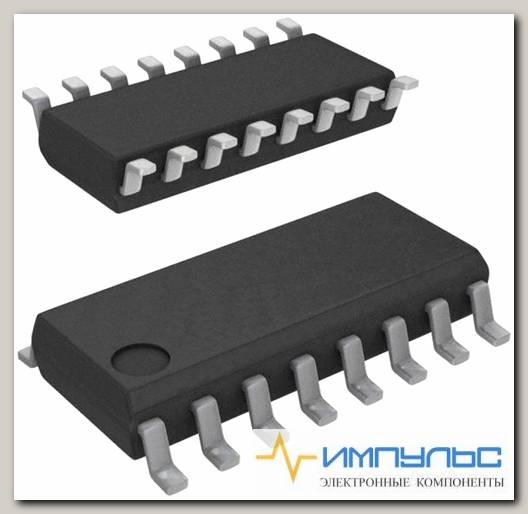

IC, 74HC CMOS, SMD, 74HC595, SOIC16; Logic Family / Base Number:74HC595; Shift Register Function:Serial to Parallel, Serial to Serial; No. of Elements:1 Element; No. of Bits Per Element:8bit; Logic Case Style:SOIC; No. of Pins:16Pins; Supply Voltage Min:2V; Supply Voltage Max:6V; IC Output Type:Tri State; Logic IC Family:74HC; Logic IC Base Number:74595; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (27-Jun-2018); Base Number:74; Frequency:35MHz; IC Generic Number:74HC595; Input Current Max:1µA; Logic Function Number:74595G; Logic IC Base Number:74595; Logic IC Function:8bit Ser-In/Ser or Par-Out Latched Shift Register (3-State); Logic Type:Shift Register; No. of Elements:1Elements; Operating Temperature Range:-55°C to +125°C; Power Dissipation Ptot Max:500mW; Supply Voltage Range:2V to 6V

Direction Type	Uni-Directional
Fabrication Technology	CMOS
Lead Finish	Matte Tin
Logic Function	Shift Register
Max Processing Temp	260
Maximum Operating Supply Voltage	6 V
Maximum Propagation Delay Time @ Maximum CL	140 2VI100 3VI28 4.5VI24 6V ns
Maximum Quiescent Current	0.004 mA
Minimum Operating Supply Voltage	2 V
Mounting	Surface Mount
Number of Element Inputs	1
Number of Element Outputs	9
Number of Elements per Chip	1
Number of Stages	8
Operating Temperature	-55 to 125 C
Operation Mode	Serial to Serial/Parallel
Output Type	3-State
Parallel Enable Input	No
Propagation Delay Test Condition	50 pF
Reset Type	Asynchronous
Terminal Count Output	No
Triggering Type	Positive-Edge
Typical Operating Supply Voltage	2.5I3.3I5 V
Absolute Propagation Delay Time (ns)	225
Automotive	No
ECCN (US)	EAR99
EU RoHS	Compliant
Lead Shape	Gull-wing
Logic Family	HC
Maximum Operating Supply Voltage (V)	6
Maximum Operating Temperature (°C)	125
Maximum Propagation Delay Time @ Maximum CL (ns)	140 2V|100 3V|28 4.5V|24 6V
Maximum Quiescent Current (mA)	0.004
Minimum Operating Supply Voltage (V)	2
Minimum Operating Temperature (°C)	-55
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Packaging	Tube
Part Status	Active
PCB changed	16
Pin Count	16
PPAP	No
Process Technology	CMOS
Propagation Delay Test Condition (pF)	50
Standard Package Name	SOP
Supplier Package	SOIC
Typical Operating Supply Voltage (V)	2.5|3.3|5
Вес, г	0.31
