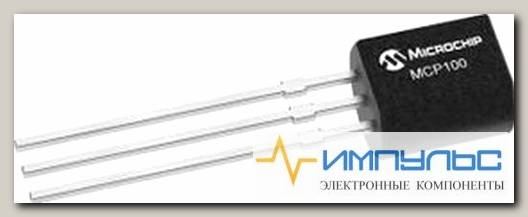

MCP100-300DI/TO /Код si-875689

IC, SUPERVISOR, SMD, TO-92-3, 100; Threshold Voltage:2.925V; No. of Supervisors / Monitors:1Monitors; Supply Voltage Min:1V; Supply Voltage Max:5.5V; Reset Type:Active-Low; Digital IC Case:TO-92; No. of Pins:3Pins; Delay Time:350ms; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:AEC-Q100; RoHS Phthalates Compliant:Yes; MSL:-; SVHC:No SVHC (27-Jun-2018); Base Number:100; Operating Temperature Range:-40°C to +85°C; Supply Current:45µA; Supply Voltage Range:1V to 5.5V; Termination Type:Through Hole

Battery Backup Switching	No Backup
Brand	Microchip Technology
Chip Enable Signals	No Chip Enable
Factory Pack Quantity	1000
Height	4.62 mm
Length	4.71 mm
Manual Reset	No Manual Reset
Manufacturer	Microchip
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	Through Hole
Number of Inputs Monitored	1 Input
Operating Supply Current	60 uA
Output Type	Active Low, Push-Pull
Overvoltage Threshold	3 V
Package / Case	TO-92-3
Packaging	Bulk
Power Fail Detection	No
Product Category	Supervisory Circuits
RoHS	Details
Series	MCP100
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1 V
Threshold Voltage	3 V, 3.3 V, 5 V
Type	Voltage Supervisory
Undervoltage Threshold	2.85 V
Unit Weight	0.016 oz
Watchdog Timers	No Watchdog
Width	3.62 mm
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Package Width	4.19(Max)
Package Length	5.21(Max)
PCB changed	3
Package Height	5.33(Max)
Mounting	Through Hole
Number of Supervisors	1
Output Driver	Active Low/Push-Pull
Minimum Reset Threshold Voltage (V)	2.85
Typical Reset Threshold Voltage (V)	2.925
Maximum Reset Threshold Voltage (V)	3
Monitored Voltage (V)	5|3.3|3
Minimum Operating Supply Voltage (V)	1
Maximum Operating Supply Voltage (V)	5.5
Maximum Supply Current (uA)	60
Watchdog Timer	No
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Pin Count	3
Supplier Package	TO-92
Standard Package Name	TO-92
