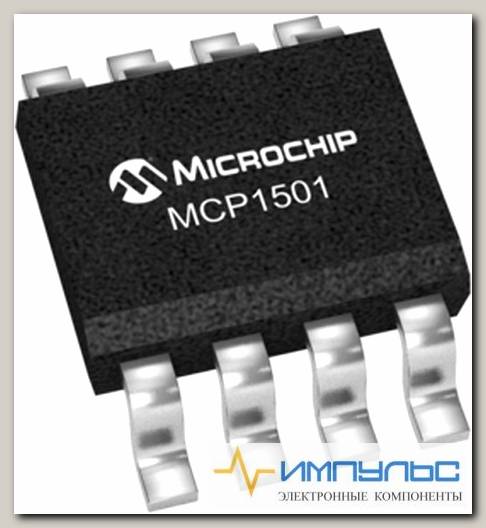

MCP1501-40E/SN /Код si-330120

VOLTAGE REF, SERIES, 4.096V, NSOIC-8; Voltage Reference Type:Series - Fixed; Product Range:MCP1501 Series; Reference Voltage:4.096V; Initial Accuracy:0.08%; Temperature Coefficient:± 10ppm/°C; Voltage Reference Case Style:NSOIC; No. of Pins:8Pins; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018)

Current - Output	20mA
Current - Supply	550ВuA
Manufacturer	Microchip Technology
Mounting Type	Surface Mount
Noise - 0.1Hz to 10Hz	20ВuVrms
Noise - 10Hz to 10kHz	110ВuVrms
Operating Temperature	-40В C ~ 125В C(TA)
Output Type	Fixed
Package / Case	8-SOIC(0.154, 3.90mm Width)
Packaging	Tube
Part Status	Active
Reference Type	Series
Series	-
Supplier Device Package	8-SOIC
Temperature Coefficient	50ppm/В C
Tolerance	В±0.1%
Voltage - Input	4.3V ~ 5.5V
Voltage - Output (Min/Fixed)	4.096V
Base Product Number	MCP1501 ->,
ECCN	EAR99
HTSUS	8542.39.0001
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Package	Tube
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Initial Accuracy	±0.08%
Line Regulation	50 ppm/V
Load Regulation	40(Sink)ppm/mA, 70(Source)ppm/mA
Maximum Input Voltage	5.5 V
Maximum Operating Temperature	+125 °C
Maximum Output Current	30mA
Maximum Output Voltage	4.099 V
Minimum Operating Temperature	-40 °C
Minimum Output Voltage	4.092 V
Nominal Voltage	4.096V
Package Type	SOIC
Pin Count	8
Topology	Series
Width	3.9mm
