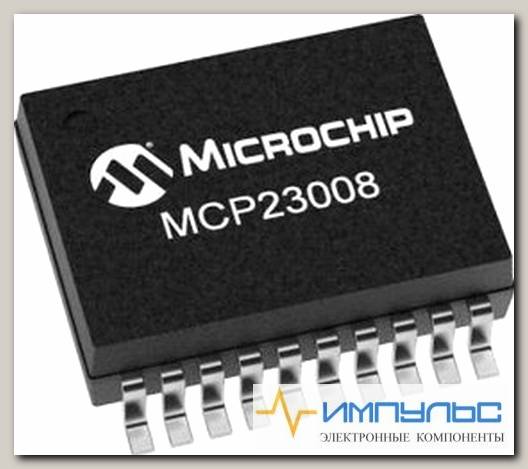

MCP23008-E/SS /Код si-304576

REMOTE I/O EXPANDER, IІC&SPI, 20SSOP; Chip Configuration:8bit; Bus Frequency:1.7MHz; IC Interface Type:I2C; Supply Voltage Min:1.8V; Supply Voltage Max:5.5V; Interface Case Style:SSOP; No. of Pins:20Pins; No. of I/O's:8I/O's; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Base Number:23008; Frequency:10MHz; Operating Temperature Max:125°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +125°C; Resolution (Bits):8bit; Supply Current:1mA; Supply Voltage Range:1.8V to 5.5V; Termination Type:Surface Mount Device

Brand	Microchip Technology
Factory Pack Quantity	67
Interface Type	I2C, Serial
Interrupt Output	With Interrupt
Logic Family	MCP23008
Manufacturer	Microchip
Maximum Operating Frequency	1.7 MHz
Maximum Operating Temperature	+125 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of I/Os	8 I/O
Operating Current	1 mA
Operating Supply Voltage	1.8 V to 5.5 V
Output Current	25 mA
Package / Case	SSOP-20
Packaging	Tube
Power Dissipation	700 mW
Product Category	Interface-I/O Expanders
Product Type	I/O Expanders
RoHS	Details
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Package Length	7.2
Mounting	Surface Mount
Package Width	5.3
Lead Shape	Gull-wing
PCB changed	20
Package Height	1.75
Number of Addresses	8
Manual Reset	Yes
Interface Speed (kHz)	1700
I2C Bus Interface Mode	Fast Mode Plus|Standard Mode|Fast Mode
Output Type	Quasi Bidirectional
Minimum Operating Supply Voltage (V)	1.8
Maximum Operating Supply Voltage (V)	5.5
Maximum Quiescent Current (uA)	1
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Extended
Standard Package Name	SOP
Pin Count	20
Supplier Package	SSOP
Clock Frequency	1.7MHz
Interface	I2C
Maximum Supply Voltage	5.5 V
Minimum Supply Voltage	1.8 V
Mounting Type	Surface Mount
Number of I/O Channels	8
Number of Pins	20
Package Type	SSOP
