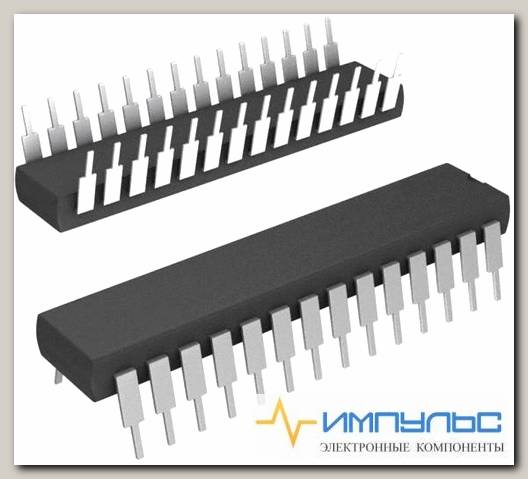

MCP23S17-E/SP, SPI Interface 10000kHz 5.5V 28-Pin SPDIP Tube /Код si-301507

MCP23x17 I/O Expanders Microchip Technology MCP23x17 I/O Expanders feature a 16-bit general-purpose parallel bi-directional I/O port with a high-speed I 2 C interface. These I/O expanders come with three hardware address pins that allow up to eight devices on the bus and configurable interrupt output pins. The hardware pins are used to determine the device address. The MCP23x17 expanders consist of multiple 8-bit configuration registers for input, output, and polarity selection. These MCP23x17 I/O expanders offer two interrupt pins INTA and INTB that will activate if either port causes an interrupt.

Brand:	Microchip Technology/Atmel
ESD Protection:	4 kV
Factory Pack Quantity: Factory Pack Quantity:	15
Interface Type:	Serial, SPI
Interrupt Output:	With Interrupt
Manufacturer:	Microchip
Maximum Clock Frequency:	10 MHz
Maximum Operating Temperature:	+125 C
Minimum Operating Temperature:	-40 C
Mounting Style:	Through Hole
Number of I/Os:	16 I/O
Package/Case:	SPDIP-28
Packaging:	Tube
Product Category:	Interface-I/O Expanders
Product Type:	I/O Expanders
Series:	MCP23S17
Subcategory:	Interface ICs
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	1.8 V
Base Part Number	MCP23S17
Clock Frequency	10MHz
Current - Output Source/Sink	25mA
Features	POR
Interface	SPI
Interrupt Output	Yes
Manufacturer	Microchip Technology
Mounting Type	Through Hole
Number of I/O	16
Operating Temperature	-40В C ~ 125В C
Output Type	Push-Pull
Package / Case	28-DIP(0.300, 7.62mm)
Packaging	Tube
Part Status	Active
Series	-
Supplier Device Package	28-SPDIP
Voltage - Supply	1.8V ~ 5.5V
корпус	SDIP28
