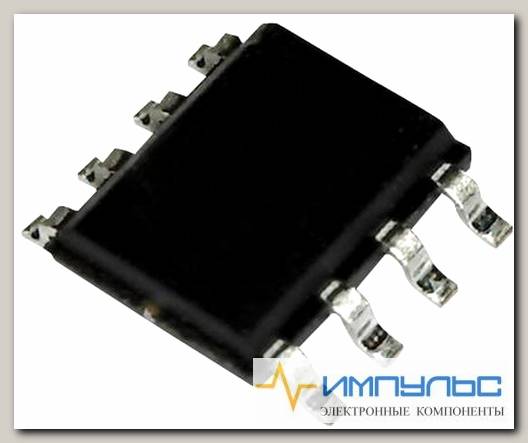

MCP3202-BI/SN /Код si-233958

IC, 12BIT ADC, SMD, 3202, SOIC8; Resolution (Bits):12bit; Sampling Rate:100kSPS; Input Channel Type:Pseudo Differential, Single Ended; Data Interface:Serial, SPI; Supply Voltage Type:Single; Supply Voltage Min:2.7V; Supply Voltage Max:5.5V; ADC / DAC Case Style:SOIC; No. of Pins:8Pins; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:Dual 12-Bit SAR ADCs; Automotive Qualification Standard:AEC-Q100; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); A/D / D/A Features:CMOS, Industrial Temperature, Internal Reference, Latches, Rail-to-Rail, Sample and Hold, Serial O/P, Successive Approximation; Base Number:3202; Conversion Time:10µs; IC Case Style:SOIC; IC Generic Number:3202; Linearity Error ADC / DAC +:1LSB; Linearity Error ADC / DAC -:1LSB; Logic Function Number:3202; No. of Bits:12bit; No. of Channels:2Channels; Operating Temperature Range:-40°C to +85°C; Power Dissipation Ptot Max:2000mW; Supply Current:375µA

Architecture	SAR
Differential Input	Yes
Differential Linearity Error	' ±1LSB
Digital Supply Support	NO
Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Full Scale Error	' ±5LSB
Input Polarity	Unipolar
Input Type	Voltage
Integral Nonlinearity Error	' ±1LSB(LSB)
Interface Type	Serial(3-Wire/SPI)
Mounting	Surface Mount
Number of Elements	1
Number of Input Channels	2/1
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Package Type	SOIC N
Packaging	Rail/Tube
Pin Count	8
Power Supply Requirement	Single
Rad Hardened	No
Rated Input Volt	5.5V
Reference Voltage	SUPPLY(V)
Resolution	12Bit
Sample and Hold	YES
Sample Rate	100KSPS(KSPS)
Single Supply Voltage (Max)	5.5(V)
Single Supply Voltage (Min)	2.7(V)
Single Supply Voltage (Typ)	3.3/5(V)
Single-Ended Input	YES
Maximum Operating Temperature	+85 °C
Length	4.9mm
Typical Single Supply Voltage	2.7 > 5.5 V
Brand	Microchip
Power Supply Type	Single
Sampling Rate	100ksps
Digital Interface Type	Serial (SPI)
Input Signal Type	Pseudo Differential, Single Ended
Mounting Type	Surface Mount
Minimum Operating Temperature	-40 °C
Width	3.9mm
Height	1.5mm
Dimensions	4.9 x 3.9 x 1.5mm
Number of ADCs	1
Base Product Number	MCP3202 ->,
Configuration	S/H-ADC
Data Interface	SPI
ECCN	EAR99
HTSUS	8542.39.0001
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of A/D Converters	1
Number of Bits	12
Number of Inputs	1, 2
Operating Temperature	-40В°C ~ 85В°C
Package	Tube
Package / Case	8-SOIC (0.154, 3.90mm Width)
PCN Assembly/Origin	http://www.microchip.com/mymicrochip/NotificationD
PCN Design/Specification	http://www.microchip.com/mymicrochip/NotificationD
PCN Packaging	http://www.microchip.com/mymicrochip/NotificationD
Ratio - S/H:ADC	1:1
REACH Status	REACH Unaffected
Reference Type	External
RoHS Status	ROHS3 Compliant
Sampling Rate (Per Second)	100k
Supplier Device Package	8-SOIC
Video File	ADC Aspects - Episode 1 - QuantizationADC Aspects
Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
Количество Выводов	8вывод(-ов)
Линейка Продукции	Dual 12-Bit SAR ADCs
Максимальная Рабочая Температура	85 C
Максимальное Напряжение Питания	5.5В
Минимальная Рабочая Температура	-40 C
Минимальное Напряжение Питания	2.7В
Стиль Корпуса АЦП / ЦАП	SOIC
Тип Входного Канала	Псевдо-дифференциальный, Несимметричный
Тип Напряжения Питания	Однополярный
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
Частота Выборки	100Квыборок/с
