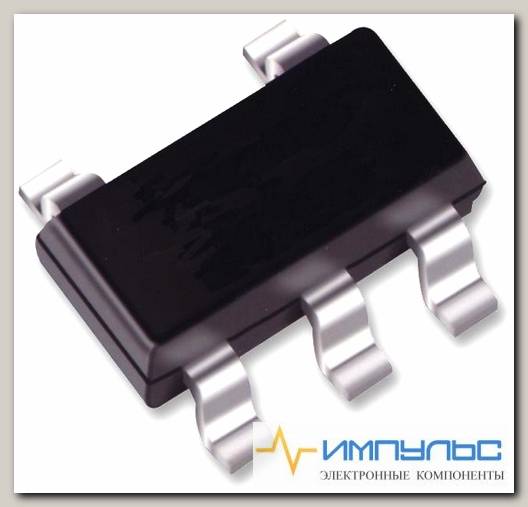

MCP6541RT-I/OT /Код si-376062

COMPARATOR, AEC-Q100, SINGLE, SOT-23-5; Comparator Type:Sub-Microamp; No. of Comparators:1 Comparator; Response Time:-; Supply Voltage Range:1.6V to 5.5V; Comparator Case Style:SOT-23; No. of Pins:5Pins; IC Output Type:Push Pull; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:AEC-Q100; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018)

Common Mode Rejection Ratio	70(dB)
Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Input Offset Voltage	7(mV)
Mounting	Surface Mount
Number of Elements	1
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Output Type	Push-Pull
Package Type	SOT-23
Packaging	Tape and Reel
Pin Count	5
Power Supply Rejection Ratio	80(dB)
Power Supply Requirement	Single
Rad Hardened	No
Single Supply Voltage (Max)	5.5(V)
Single Supply Voltage (Min)	1.6(V)
Single Supply Voltage (Typ)	3/5(V)
Strobe Capability	NO
Technology	CMOS
