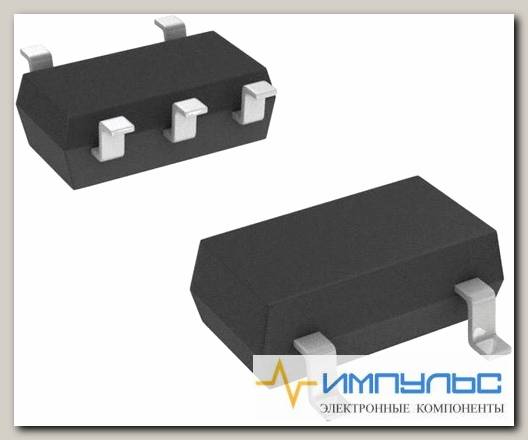

MCP6541T-I/OT /Код si-376248

COMP, PUSHPULL, 1.6V, SNGL, 5SOT23; Comparator Type:Sub-Microamp; No. of Comparators:1 Comparator; Response Time:4µs; Supply Voltage Range:1.6V to 5.5V; Comparator Case Style:SOT-23; No. of Pins:5Pins; IC Output Type:CMOS, Push Pull, TTL; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:AEC-Q100; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Amplifier Case Style:SOT-23; Base Number:6541; No. of Comparators:1; No.Comparators:1; Operating Temperature Range:-40°C to +85°C; Output Compatibility:CMOS, TTL; Supply Current:600nA

Amplifier Type	Comparator
Common Mode Rejection Ratio	70 dB
Comparator Type	Sub-Microamp
Current, Input Bias	25 pA
Current, Input Offset	иplusmn, 1 pA
Current, Output	иplusmn, 30 mA
Current, Supply	18 pA
Dimensions	3.1x1.8x1.3 mm
Height	1.3 mm
Impedance, Thermal	256 иdeg, C/W
Length	3.1 mm
Mounting Type	Surface Mount
Number of Amplifiers	Single
Number of Channels per Chip	1
Number of Pins	5
Output Type	Push-Pull
Package Type	SOT-23
Propagation Delay	4 иmu, s
Temperature, Operating, Maximum	+85 иdeg, C
Temperature, Operating, Minimum	-40 иdeg, C
Temperature, Operating, Range	-40 to+85 иdeg, C
Time, Fall	0.85 иmu, s
Time, Response	0.85 иmu, s
Time, Rise	0.85 иmu, s
Type of Power Supply	Single
Typical CMRR	70 dB
Typical PSRR	80 dB
Typical Single Supply Voltage	1.6 to 5.5 V
Voltage, Input	5.8 V
Voltage, Input Offset	-7 to 7 mV
Voltage, Noise	200 иmu, Vp-p
Width	1.8 mm
Iq Per Channel (Typ)	1uA
Maximum Operating Temperature	85В°C
Minimum Operating Temperature	-40В°C
Number Of Elements	1
Propagation Delay - Max	8us
Supply Voltage - Max	5.5V
Supply Voltage - Min	1.6V
